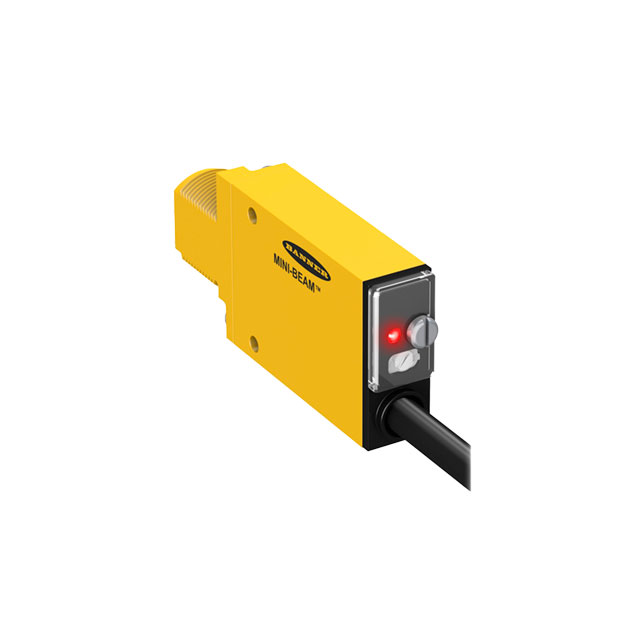

SM2A312DQD
ActivePHOTOELECTRIC SENSOR, AC-VOLTAGE SERIES, MINI-BEAM, DIFFUSE, 380MM, SCR, 24-240VAC
Deep-Dive with AI
Search across all available documentation for this part.
SM2A312DQD
ActivePHOTOELECTRIC SENSOR, AC-VOLTAGE SERIES, MINI-BEAM, DIFFUSE, 380MM, SCR, 24-240VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM2A312DQD |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 4, NEMA 1, NEMA 13, NEMA 4X, IEC IP67, NEMA 12, NEMA 3S, NEMA 2, NEMA 3 |
| Light Source | Red LED |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | Light-On/Dark-On |
| Response Time | 8 ms |
| Sensing Distance | 380 mm |
| Sensing Distance | 14.961 in |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SM2A312 Series
The SM2A312DQD is a MINI-BEAM® 380mm AC-operated diffuse mode Optical Sensor with rugged, epoxy-encapsulated construction to meets NEMA standards 1, 2, 3, 3S, 4, 4X, 12 and 13, IEC IP67. This sensor is a compact, modulated, self-contained diffuse proximity mode for 24 to 240VAC operation. It features SPST SCR solid-state output switches up to 300mA, low leakage current and saturation voltage. Physically and electrically interchangeable with 18mm barrel-type photoelectrics.
