SM2A312FVG

Active

BANNER ENGINEERING

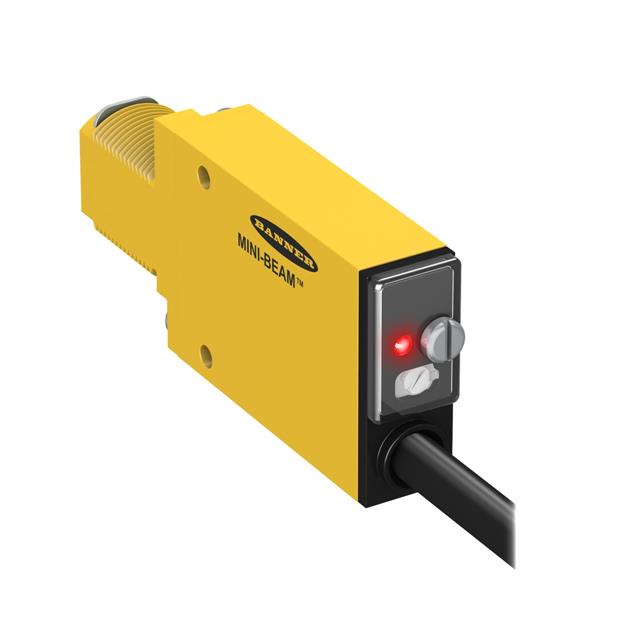

SM2A312FVG AC MINIBEAM SCANNER AC MINI FIBER VISIBLE GRN LED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SM2A312FVG AC MINIBEAM SCANNER AC MINI FIBER VISIBLE GRN LED

Technical Specifications

Parameters and characteristics for this part

Part	Response Time	Output Configuration	Light Source	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance	Connection Method	Cable Length	Cable Length	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]
BANNER ENGINEERING SM2A312D	8 ms	Light-On/Dark-On	Red LED	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	240 VAC	24 VAC	380 mm	14.961 in	Cable	78.74 in	2 m	Diffuse	-20 C	70 °C
BANNER ENGINEERING SM2A312LV	4 ms	Light-On/Dark-On	Red LED	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	240 VAC	24 VAC	2 m	78.74 "	Connector			Polarized Retroreflective	-20 C	70 °C
BANNER ENGINEERING SM2A312FVG	8 ms		RED (650nm)	NEMA 1 2 3 3S 4 4X 6 12 13 IEC IP67	240 VAC	24 VAC			Cable	78.74 in	2 m	Fiber Optic	-20 C	70 °C
BANNER ENGINEERING SM2A312DQD	8 ms	Light-On/Dark-On	Red LED	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	240 VAC	24 VAC	380 mm	14.961 in	Connector			Diffuse	-20 C	70 °C
BANNER ENGINEERING SM2A312LVQD	4 ms	Light-On/Dark-On	Red LED	IEC IP67 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3S NEMA 4 NEMA 4X	240 VAC	24 VAC	5 m	196.85 in	Connector			NonPolarized Retroreflective	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 191.00
Newark	Each	1	$ 195.00

General part information

Fiber Optic Optical Sensor
