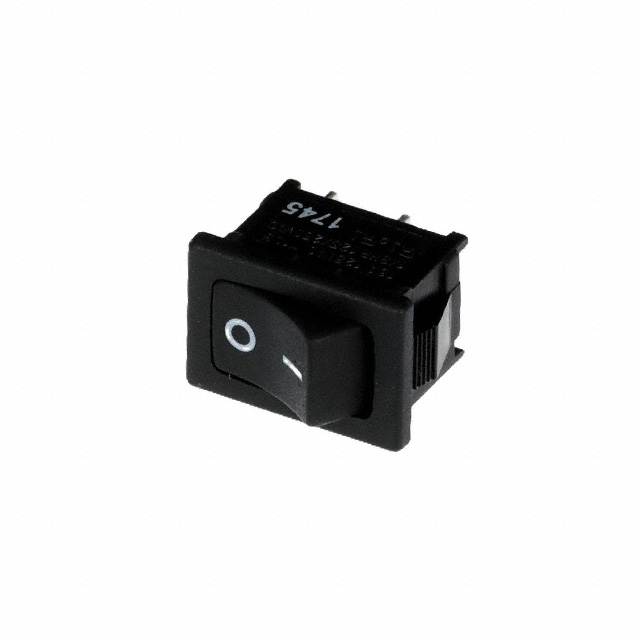

RA111C1121

Active

E-Switch

ROCKER; SPST; POS: 2; OFF-ON; 16A/125VAC; BLACK; RA1; RCONT MAX: 35MΩ

Deep-Dive with AI

Search across all available documentation for this part.

RA111C1121

Active

E-Switch

ROCKER; SPST; POS: 2; OFF-ON; 16A/125VAC; BLACK; RA1; RCONT MAX: 35MΩ

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RA111C1121

Actuator Marking	O -
Actuator Type	Concave (Curved)
Approval Agency	cULus
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	19.4 mm
Panel Cutout Dimensions [y]	13.1 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

RA111C1 Series

Part	Actuator Type	Circuit	Current Rating (Amps)	Switch Function	Actuator Marking	Electrical Life	Approval Agency	Voltage Rating - AC	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Illumination Type, Color	Illumination Voltage (Nominal)	Ingress Protection	Features
E-Switch RA111C1123	Concave (Curved)	SPST	16 A	On-Off	ON OFF Vertical	10000 Cycles	cULus	125 V	Black	55 °C	-20 C	Quick Connect - 0.187" (4.7mm)	13.1 mm	19.4 mm	Panel Mount Snap-In
E-Switch RA11131123	Concave (Curved)	SPST	10 A	On-Off	ON OFF Vertical	10000 Cycles	cULus	125 V	Black	55 °C	-20 C	Quick Connect - 0.187" (4.7mm)	13.1 mm	19.4 mm	Panel Mount Snap-In
E-Switch RA111C1021-116	Concave (Curved) - Illuminated	SPST	16 A	On-Off	O -	10000 Cycles	cULus	125 V	Red	55 °C	-20 C	Quick Connect - 0.187" (4.7mm)	13.1 mm	19.4 mm	Panel Mount Snap-In	Neon Red	125 VAC
E-Switch RA111C1181	Concave (Curved)	SPST	16 A	On-Off	O -	10000 Cycles	cULus	125 V	Black	55 °C	-20 C	Quick Connect - 0.187" (4.7mm)	13.1 mm	19.4 mm	Panel Mount Snap-In
E-Switch RA111C1121/ACC-P01	Concave (Curved)	SPST	16 A	On-Off	O -	10000 Cycles	cULus	125 V	Black	55 °C	-20 C	Quick Connect - 0.187" (4.7mm)	13.1 mm	19.4 mm	Panel Mount Snap-In			IP54 - Dust Protected Water Resistant	Sealing Boot
E-Switch RA111C1121	Concave (Curved)	SPST	16 A	On-Off	O -	10000 Cycles	cULus	125 V	Black	55 °C	-20 C	Quick Connect - 0.187" (4.7mm)	13.1 mm	19.4 mm	Panel Mount Snap-In
E-Switch RA111C1021-124	Concave (Curved) - Illuminated	SPST	16 A	On-Off	O -	10000 Cycles	cULus	125 V	Amber	55 °C	-20 C	Quick Connect - 0.187" (4.7mm)	13.1 mm	19.4 mm	Panel Mount Snap-In	Amber Incandescent	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.61
		10	$ 0.55
		25	$ 0.52
		50	$ 0.49
		200	$ 0.47
		400	$ 0.45
		600	$ 0.41

Description

General part information

RA111C1 Series

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
