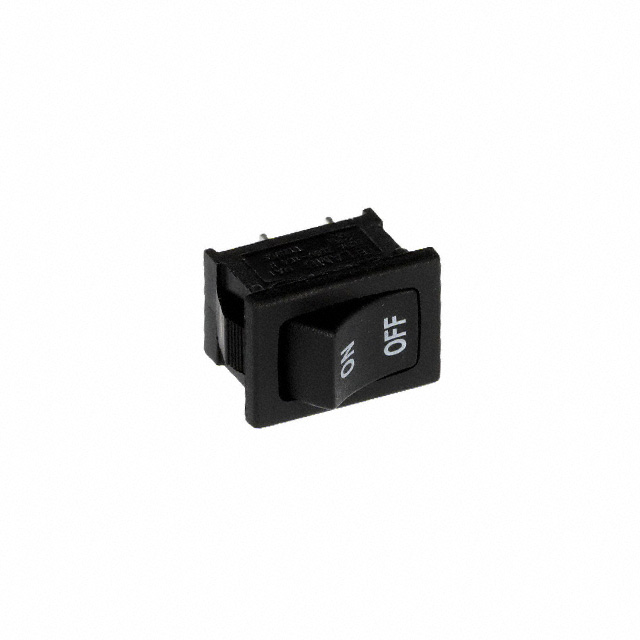

RA11131123
ActiveE-Switch
ROCKER; SPST; POS: 2; OFF-ON; 5.5A/250VAC; BLACK; RA1; -20÷105°C
Deep-Dive with AI
Search across all available documentation for this part.
RA11131123
ActiveE-Switch
ROCKER; SPST; POS: 2; OFF-ON; 5.5A/250VAC; BLACK; RA1; -20÷105°C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RA11131123 |
|---|---|
| Actuator Marking | Vertical, ON OFF |
| Actuator Type | Concave (Curved) |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.4 mm |
| Panel Cutout Dimensions [y] | 13.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.67 | |
| 10 | $ 0.59 | |||
| 200 | $ 0.51 | |||
| 1000 | $ 0.41 | |||
Description
General part information
RA11131 Series
Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
