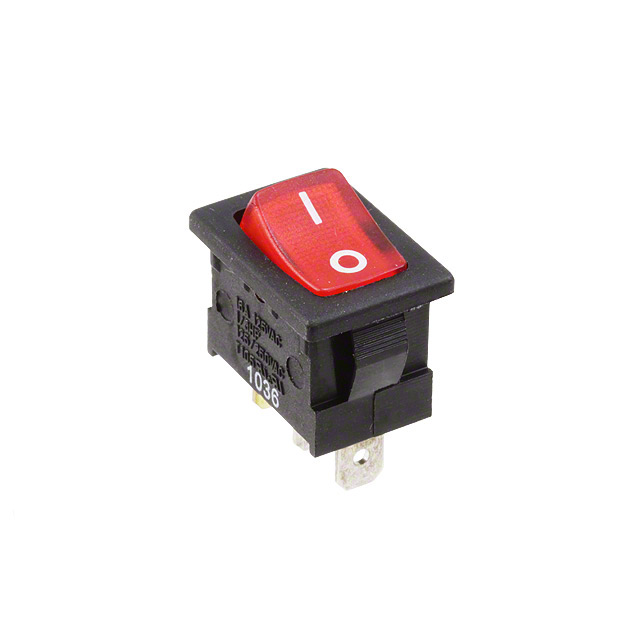

RA111C1021-116
ActiveE-Switch
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
RA111C1021-116
ActiveE-Switch
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RA111C1021-116 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | Red, Neon |
| Illumination Voltage (Nominal) | 125 VAC |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.4 mm |
| Panel Cutout Dimensions [y] | 13.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.51 | |
| 10 | $ 1.30 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.18 | |||
| 200 | $ 1.08 | |||
| 400 | $ 1.03 | |||
| 600 | $ 1.00 | |||
| 1000 | $ 0.97 | |||
Description
General part information
RA111C1 Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
