172117

Active

Amphenol RF

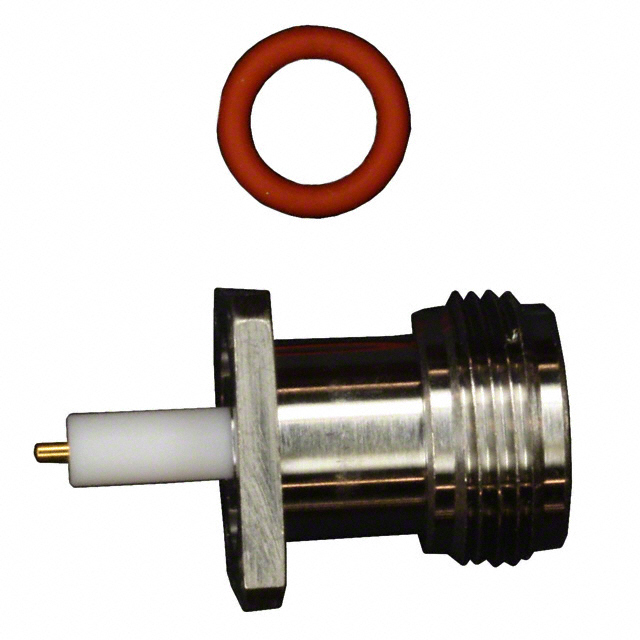

CONN N RCPT STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

172117

Active

Amphenol RF

CONN N RCPT STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172117

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Gasket
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

1721 Series

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Feature	Number of Ports	Voltage Rating	Connector Style	Impedance	Features	Includes	Shield Termination	Center Contact Material	Mating Cycles	Contact Termination	Insertion Loss	Frequency - Max [Max]	Housing Color	Center Contact Plating	Body Finish	Body Material	Connector Type	Mounting Type	Cable Group	Cable Group	Cable Group [Min]	Cable Group [Max]
Amphenol RF 172117	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Weatherproof	Flange	1	1500 V	N Type	50 Ohms	Extended Insulation	1 Connector 1 Gasket	Solder	Phosphor Bronze	500	Solder	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Receptacle
Amphenol RF 172113	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Weatherproof		1	1500 V	N Type	50 Ohms		1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	Clamp	Brass	500	Crimp	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Plug	Free Hanging (In-Line)	213 214 225 302 393 87 8A 9 9A 9B RG-8
Amphenol RF 172153	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Weatherproof	Bulkhead - Front Side Nut	1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Gasket 1 Insulator 1 Lockwasher 2 Nuts	Solder	Beryllium Copper	500	Solder	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Jack		RG-401	0.25 in
Amphenol RF 172169	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C		Flange	1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Insulator 1 Nut	Solder	Phosphor Bronze	500	Solder	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Jack		RG-405 Semi Rigid		0.085 in	0.086 in
Amphenol RF 172135	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Weatherproof		1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Ferrule 1 Spacer	Crimp	Brass	500	Crimp Solder	0.7 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Plug	Free Hanging (In-Line)	Belden 9258 LMR-240 RG-8X
Amphenol RF 172118	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C		Flange	1	1500 V	N Type	50 Ohms			Solder	Brass	500	Solder Cup	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Receptacle
Amphenol RF 172173	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C		Flange	1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Ferrule	Crimp	Phosphor Bronze	500	Crimp	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Jack		188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 172133	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C			1	1500 V	N Type	50 Ohms			Solder	Brass	500	Crimp	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Plug	Free Hanging (In-Line)
Amphenol RF 172147	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C			1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Ferrule	Crimp	Phosphor Bronze	500	Crimp	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Jack	Free Hanging (In-Line)	RG-55	142 223 400
Amphenol RF 172167	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C			1	1500 V	N Type	50 Ohms		1 Connector 1 End Cap 1 Ferrule	Crimp	Brass	500	Solder	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Plug	Free Hanging (In-Line) Right Angle	213 214 225 302 393 87 8A 9 9A 9B RG-8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.05
		10	$ 7.28
		25	$ 6.88
		50	$ 6.71
		100	$ 6.38
		300	$ 5.71
		500	$ 5.37
		1000	$ 4.70

Description

General part information

1721 Series

N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
