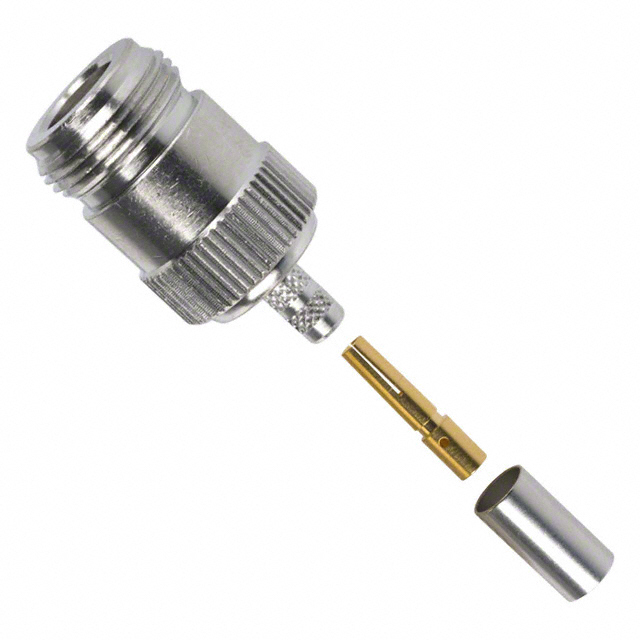

RF / COAXIAL CONNECTOR, N TYPE, STRAIGHT JACK, CRIMP, 50 OHM, RG55, RG142, RG223, RG400
Deep-Dive with AI
Search across all available documentation for this part.
172147
ActiveAmphenol RF
RF / COAXIAL CONNECTOR, N TYPE, STRAIGHT JACK, CRIMP, 50 OHM, RG55, RG142, RG223, RG400
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 172147 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-55 |
| Cable Group | 223, 142, 400 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.15 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 1500 V |
1721 Series
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Mounting Feature | Number of Ports | Voltage Rating | Connector Style | Impedance | Features | Includes | Shield Termination | Center Contact Material | Mating Cycles | Contact Termination | Insertion Loss | Frequency - Max [Max] | Housing Color | Center Contact Plating | Body Finish | Body Material | Connector Type | Mounting Type | Cable Group | Cable Group | Cable Group [Min] | Cable Group [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Weatherproof | Flange | 1 | 1500 V | N Type | 50 Ohms | Extended Insulation | 1 Connector 1 Gasket | Solder | Phosphor Bronze | 500 | Solder | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Female Socket Receptacle | |||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Weatherproof | 1 | 1500 V | N Type | 50 Ohms | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer | Clamp | Brass | 500 | Crimp | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Male Pin Plug | Free Hanging (In-Line) | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | |||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Weatherproof | Bulkhead - Front Side Nut | 1 | 1500 V | N Type | 50 Ohms | 1 Connector 1 Contact 1 Gasket 1 Insulator 1 Lockwasher 2 Nuts | Solder | Beryllium Copper | 500 | Solder | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Female Socket Jack | RG-401 | 0.25 in | ||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Flange | 1 | 1500 V | N Type | 50 Ohms | 1 Connector 1 Contact 1 Insulator 1 Nut | Solder | Phosphor Bronze | 500 | Solder | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Female Socket Jack | RG-405 Semi Rigid | 0.085 in | 0.086 in | ||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Weatherproof | 1 | 1500 V | N Type | 50 Ohms | 1 Connector 1 Contact 1 Ferrule 1 Spacer | Crimp | Brass | 500 | Crimp Solder | 0.7 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Male Pin Plug | Free Hanging (In-Line) | Belden 9258 LMR-240 RG-8X | |||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Flange | 1 | 1500 V | N Type | 50 Ohms | Solder | Brass | 500 | Solder Cup | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Male Pin Receptacle | ||||||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Flange | 1 | 1500 V | N Type | 50 Ohms | 1 Connector 1 Contact 1 Ferrule | Crimp | Phosphor Bronze | 500 | Crimp | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Female Socket Jack | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | ||||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 | 1500 V | N Type | 50 Ohms | Solder | Brass | 500 | Crimp | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Male Pin Plug | Free Hanging (In-Line) | ||||||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 | 1500 V | N Type | 50 Ohms | 1 Connector 1 Contact 1 Ferrule | Crimp | Phosphor Bronze | 500 | Crimp | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Female Socket Jack | Free Hanging (In-Line) | RG-55 | 142 223 400 | |||||
Amphenol RF | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 | 1500 V | N Type | 50 Ohms | 1 Connector 1 End Cap 1 Ferrule | Crimp | Brass | 500 | Solder | 0.15 dB | 11 GHz | Silver | Gold | White Bronze | Brass | Male Pin Plug | Free Hanging (In-Line) Right Angle | 213 214 225 302 393 87 8A 9 9A 9B RG-8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.80 | |
| 10 | $ 6.15 | |||
| 25 | $ 5.81 | |||
| 50 | $ 5.67 | |||
| 100 | $ 5.38 | |||
| 300 | $ 4.82 | |||
| 500 | $ 4.53 | |||
| 1000 | $ 3.97 | |||
| 2500 | $ 3.77 | |||
Description
General part information
1721 Series
N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
