172169

Active

Amphenol RF

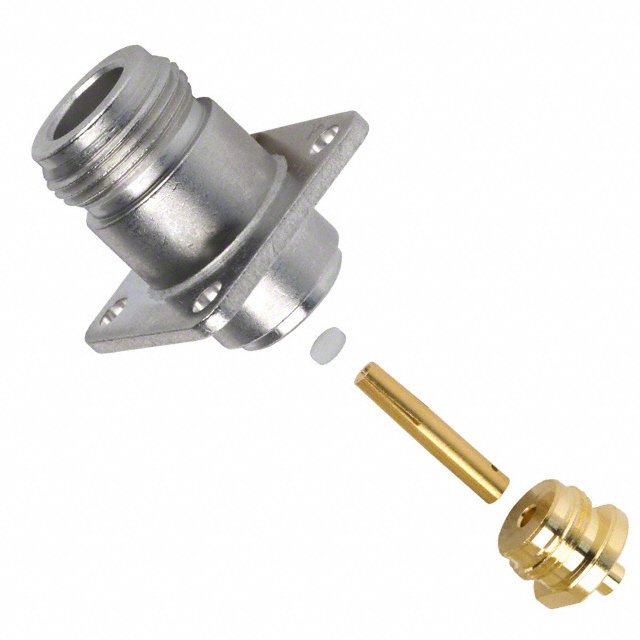

CONN N JACK STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

172169

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	172169

Body Finish	White Bronze
Body Material	Brass
Cable Group	Semi Rigid, RG-405
Cable Group [Max]	0.086 in
Cable Group [Min]	0.085 in
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Insulator, 1 Contact
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

1721 Series

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Feature	Number of Ports	Voltage Rating	Connector Style	Impedance	Features	Includes	Shield Termination	Center Contact Material	Mating Cycles	Contact Termination	Insertion Loss	Frequency - Max [Max]	Housing Color	Center Contact Plating	Body Finish	Body Material	Connector Type	Mounting Type	Cable Group	Cable Group	Cable Group [Min]	Cable Group [Max]
Amphenol RF 172117	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Weatherproof	Flange	1	1500 V	N Type	50 Ohms	Extended Insulation	1 Connector 1 Gasket	Solder	Phosphor Bronze	500	Solder	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Receptacle
Amphenol RF 172113	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Weatherproof		1	1500 V	N Type	50 Ohms		1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer	Clamp	Brass	500	Crimp	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Plug	Free Hanging (In-Line)	213 214 225 302 393 87 8A 9 9A 9B RG-8
Amphenol RF 172153	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Weatherproof	Bulkhead - Front Side Nut	1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Gasket 1 Insulator 1 Lockwasher 2 Nuts	Solder	Beryllium Copper	500	Solder	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Jack		RG-401	0.25 in
Amphenol RF 172169	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C		Flange	1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Insulator 1 Nut	Solder	Phosphor Bronze	500	Solder	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Jack		RG-405 Semi Rigid		0.085 in	0.086 in
Amphenol RF 172135	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Weatherproof		1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Ferrule 1 Spacer	Crimp	Brass	500	Crimp Solder	0.7 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Plug	Free Hanging (In-Line)	Belden 9258 LMR-240 RG-8X
Amphenol RF 172118	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C		Flange	1	1500 V	N Type	50 Ohms			Solder	Brass	500	Solder Cup	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Receptacle
Amphenol RF 172173	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C		Flange	1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Ferrule	Crimp	Phosphor Bronze	500	Crimp	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Jack		188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 172133	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C			1	1500 V	N Type	50 Ohms			Solder	Brass	500	Crimp	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Plug	Free Hanging (In-Line)
Amphenol RF 172147	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C			1	1500 V	N Type	50 Ohms		1 Connector 1 Contact 1 Ferrule	Crimp	Phosphor Bronze	500	Crimp	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Female Socket Jack	Free Hanging (In-Line)	RG-55	142 223 400
Amphenol RF 172167	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C			1	1500 V	N Type	50 Ohms		1 Connector 1 End Cap 1 Ferrule	Crimp	Brass	500	Solder	0.15 dB	11 GHz	Silver	Gold	White Bronze	Brass	Male Pin Plug	Free Hanging (In-Line) Right Angle	213 214 225 302 393 87 8A 9 9A 9B RG-8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.54
		10	$ 12.44
		25	$ 11.27
		50	$ 10.80
		100	$ 9.89
		300	$ 9.10
		500	$ 9.06
		1000	$ 8.99

Description

General part information

1721 Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
