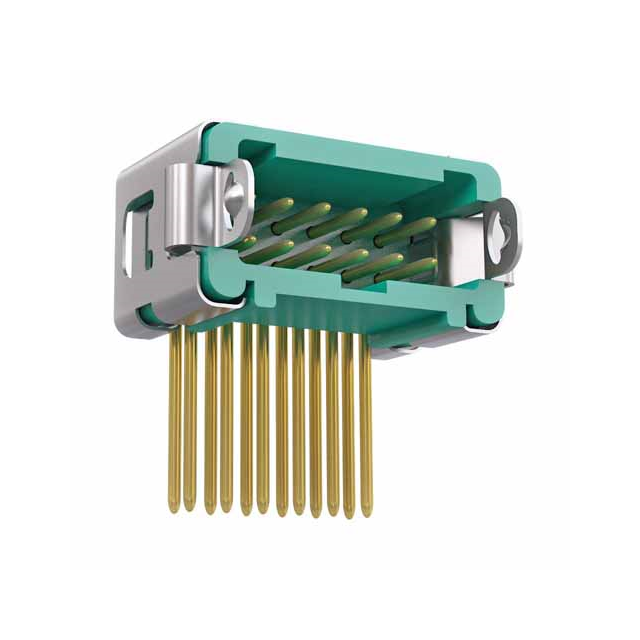

G125-MH21205L3P

Active

Harwin Inc.

6+6 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-2040696L0 G125 Spec Sheet +2

G125-MH21205L3P

Active

Harwin Inc.

6+6 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125-2040696L0 G125 Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MH21205L3P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	8 µin
Contact Finish Thickness - Post	0.203 µm
Contact Length - Post	0.189 "
Contact Length - Post	4.8 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Latch Lock
Features	Solder Retention
Insulation Color	Green
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	450 VAC/DC

G125-MH2 Series

Part	Number of Rows	Voltage Rating	Connector Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Style	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Features	Insulation Height [z]	Number of Positions
Harwin Inc. G125-MH25005L2P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	50	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH23405L2P	2		Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Nylon Polyamide (PA)			Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.217 "	5.5 mm	Through Hole			34	0.185 in	4.7 mm	2.8 A
Harwin Inc. G125-MH22005L2P	2	250 VDC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Holder	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in		Circular	All	UL94 V-0	Gold		5.56 mm	Through Hole Right Angle			20	0.189 "	4.8 mm	2 A	Solder Retention	0.219 in
Harwin Inc. G125-MH21605L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm		0.189 "	4.8 mm	2 A			16
Harwin Inc. G125-MH21005L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	10	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH20605L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	6	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L2P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L3P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A	Solder Retention
Harwin Inc. G125-MH20605L7P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	6	0.189 "	4.8 mm	2 A	Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 15.73
		10	$ 13.94
		100	$ 12.15
		500	$ 10.36
		1000	$ 9.51
Newark	Each	500	$ 12.11

Description

General part information

G125-MH2 Series

Connector Header Through Hole, Right Angle 12 position 0.049" (1.25mm)

Documents

Technical documentation and resources

G125-2040696L0

G125 Spec Sheet

Datasheet
