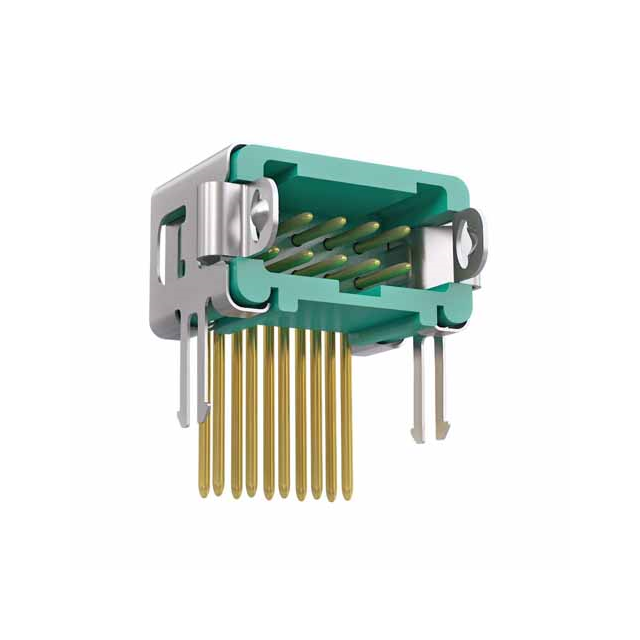

G125-MH21005L2R

Active

Harwin Inc.

5+5 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES (T+R) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125 Spec Sheet Datasheet +2

G125-MH21005L2R

Active

Harwin Inc.

5+5 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES (T+R) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125 Spec Sheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MH21005L2R

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	8 µin
Contact Finish Thickness - Post	0.203 µm
Contact Length - Post	0.189 "
Contact Length - Post	4.8 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Latch Lock
Insulation Color	Green
Insulation Height	0.218 in
Insulation Height	5.55 mm
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	450 VAC/DC

G125-MH2 Series

Part	Number of Rows	Voltage Rating	Connector Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Style	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Features	Insulation Height [z]	Number of Positions
Harwin Inc. G125-MH25005L2P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	50	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH23405L2P	2		Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Nylon Polyamide (PA)			Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.217 "	5.5 mm	Through Hole			34	0.185 in	4.7 mm	2.8 A
Harwin Inc. G125-MH22005L2P	2	250 VDC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Holder	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in		Circular	All	UL94 V-0	Gold		5.56 mm	Through Hole Right Angle			20	0.189 "	4.8 mm	2 A	Solder Retention	0.219 in
Harwin Inc. G125-MH21605L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm		0.189 "	4.8 mm	2 A			16
Harwin Inc. G125-MH21005L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	10	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH20605L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	6	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L2P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L3P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A	Solder Retention
Harwin Inc. G125-MH20605L7P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	6	0.189 "	4.8 mm	2 A	Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.11
		10	$ 7.75
		100	$ 6.58
	Tape & Reel (TR)	250	$ 6.17
		500	$ 5.88
		750	$ 5.71
		1250	$ 5.51
		1750	$ 5.38
Newark	Each	250	$ 7.34
		500	$ 6.91
		1000	$ 6.07
		2500	$ 5.77

Description

General part information

G125-MH2 Series

Connector Header Through Hole, Right Angle 10 position 0.049" (1.25mm)
