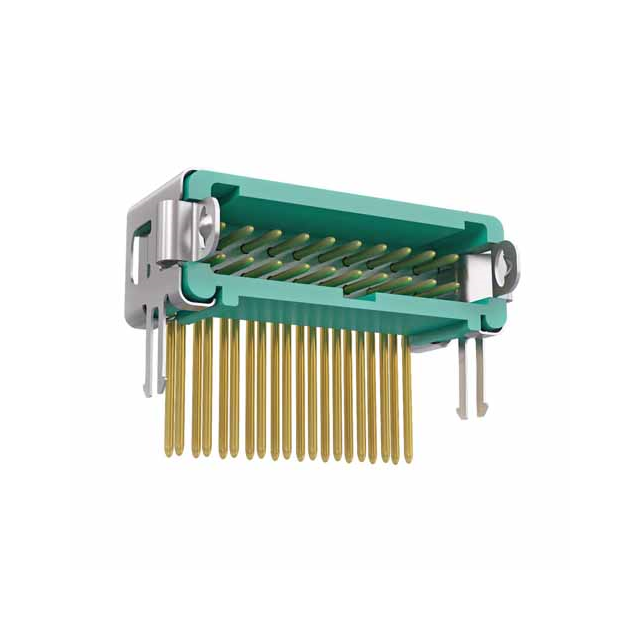

Specification	G125-MH22005L2P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8 µin
Contact Length - Post	0.189 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	2 A
Fastening Type	Latch Holder
Features	Solder Retention
Insulation Color	Green
Insulation Height	0.219 in
Insulation Material	Halogen Free, Polyamide (PA4T), Nylon 4T, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	250 V

G125-MH2 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Color	Connector Type	Pitch - Mating	Current Rating	Contact Shape	Insulation Material	Row Spacing - Mating	Style	Termination	Material Flammability Rating	Contact Length - Post	Voltage Rating	Voltage Rating (Type)	Contact Finish - Post	Number of Rows	Fastening Type	Number of Positions	Shrouding	Number of Positions Loaded	Insulation Height	Mounting Type	Contact Type	Contact Material	Features
Harwin Inc. G125-MH25005L2R	8 µin	8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	450 VAC	DC	Gold	2	Latch Lock	50	Shrouded - 4 Wall	All	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH25005L2P	8 µin	8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	450 VAC	DC	Gold	2	Latch Lock	50	Shrouded - 4 Wall	All	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH23405L2P			Gold	-65 °C	150 °C	Green	Header	0.049 in	2.8 A	Circular	Glass Filled Nylon Polyamide (PA)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.185 in			Gold	2	Latch Lock	34	Shrouded - 4 Wall	All	0.217 in	Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH22005L2P		8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	250 V			2	Latch Holder	20	Shrouded - 4 Wall	All	0.219 in	Right Angle Through Hole	Male Pin	Phosphor Bronze	Solder Retention
Harwin Inc. G125-MH21605L2R	8 µin	8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	450 VAC	DC	Gold	2	Latch Lock	16	Shrouded - 4 Wall	All	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH20605L3P	8 µin	8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	450 VAC	DC	Gold	2	Latch Lock	6	Shrouded - 4 Wall	All	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze	Solder Retention
Harwin Inc. G125-MH21005L2R	8 µin	8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	450 VAC	DC	Gold	2	Latch Lock	10	Shrouded - 4 Wall	All	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH20605L2R	8 µin	8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	450 VAC	DC	Gold	2	Latch Lock	6	Shrouded - 4 Wall	All	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH21205L2P	8 µin	8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	450 VAC	DC	Gold	2	Latch Lock	12	Shrouded - 4 Wall	All	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
Harwin Inc. G125-MH21205L2R	8 µin	8 µin	Gold	-65 °C	150 °C	Green	Header	0.049 in	2 A	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	Board Board or Cable	Solder	UL94 V-0	0.189 in	450 VAC	DC	Gold	2	Latch Lock	12	Shrouded - 4 Wall	All	0.218 in	Right Angle Through Hole	Male Pin	Phosphor Bronze
