281-652

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 26 A

Find alt

Alpha

281-652

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 26 A

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

281 Series

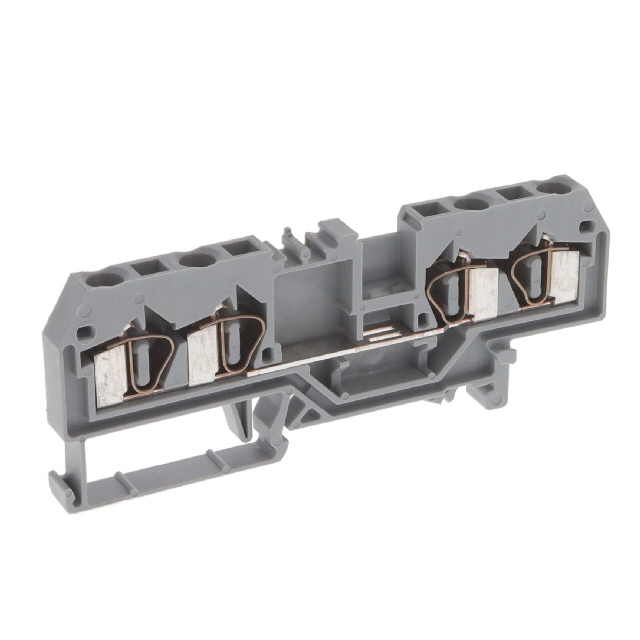

The 281-652 is a 4-conductor grey Through Terminal Block with centre marking and front-entry wiring. This terminal block has polyamide 6.6 insulator and suitable for DIN 35 rail mounting. It accepts 28 to 12AWG wire size.

Technical Specifications

Parameters and characteristics for this part

Specification	281-652

Color	Gray
Current - IEC	26 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Number of Levels	1
Number of Positions	4
Stripping Length (Max)	10 mm
Stripping Length (Min)	9 mm
Terminal Width	6 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	800 V
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.08 mm²

281 Series

Part	Material - Insulation	Stripping Length (Max)	Stripping Length (Min)	Voltage - IEC	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Positions	Color	Terminal Width	Current - IEC	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Number of Levels	Type	Termination Style	For Use With/Related Products	Fuse Width	Fuse Length	Disconnect Type	Features
WAGO Corporation 281-901	Nylon 6/6 PA66 Polyamide	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	6 mm	32 A	0.08 mm²	4 mm²	1	Feed Through	Push In Spring
WAGO Corporation 281-631	Nylon 6/6 PA66 Polyamide	10 mm	9 mm	800 V	28 AWG	12 AWG	3	Gray	6 mm	32 A	0.08 mm²	4 mm²	1	Feed Through	Push In Spring
WAGO Corporation 281-311								Gray						End Plate		Terminal Blocks
WAGO Corporation 281-657	Nylon 6/6 PA66 Polyamide	10 mm	9 mm		28 AWG	12 AWG	4	Green Yellow	6 mm		0.08 mm²	4 mm²	1	Earth Ground	Push In Spring
WAGO Corporation 281-324								Gray						End Plate		Terminal Blocks
WAGO Corporation 281-309								Orange						End Plate		Terminal Blocks
WAGO Corporation 281-512/281-501								Gray						Fuse Plug		Din Rail Terminal Blocks
WAGO Corporation 281-607	Nylon 6/6 PA66 Polyamide	10 mm	9 mm		28 AWG	12 AWG	2	Green Yellow	6 mm		0.08 mm²	4 mm²	1	Earth Ground	Push In Spring
WAGO Corporation 281-623	Nylon 6/6 PA66 Polyamide	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	10 mm	10 A	0.08 mm²	4 mm²	1	Disconnect	Push In Spring		0.25 in	1.25 in	Fuse
WAGO Corporation 281-611/281-418	Nylon 6/6 PA66 Polyamide	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	8 mm	10 A	0.08 mm²	4 mm²	1	Disconnect	Push In Spring		20 mm	5 mm	Fuse	Neon Lamp
