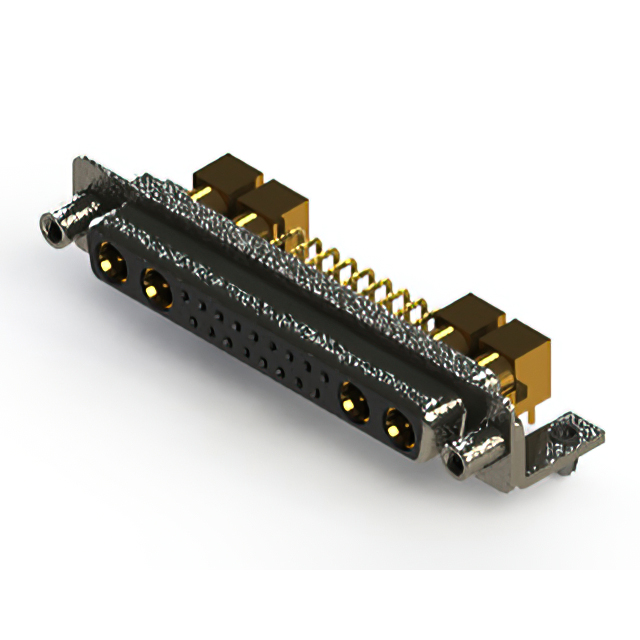

630-21W4640-5N5

Active

EDAC Inc.

CONN D-SUB RCPT 21POS R/A SLDR

630-21W4640-5N5

Active

EDAC Inc.

CONN D-SUB RCPT 21POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

630-21W Series

21 (17 + 4 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	630-21W4640-5N5

Backset Spacing	0.37 in
Color	Black
Connector Layout	21WA4, C, DC
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Board Lock
Finish	Nickel Plated
Flange Feature	Mating Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions (Special)	4
Number of Positions (Standard)	17
Number of Positions (Total)	21
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Position Types	Coax
Shell Material	Steel
Shell Size	4
Termination	Solder
Voltage Rating	125 V

630-21W Series

...

Part	Mounting Type	Contact Finish Thickness	Material Flammability Rating	Termination	Flange Feature	Connector Type	Contact Type	Shell Size	Part Code	Connector Layout	Number of Rows	Current Rating Options	Contact Finish	Backset Spacing	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Connector Style	Shell Material	Finish	Features	Voltage Rating	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Color	Dielectric Material	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Positions (Standard)	Position Types	Number of Positions (Special)
EDAC Inc. 630-21W1640-3N5	Right Angle Through Hole	30 µin	UL94 V-0	Solder	Mating Side (4-40)	Female Sockets Receptacle	Power Signal	3	21W1	B DB	2	30A 5A	Gold	0.37 in	1	21	20	Combo D-Sub	Steel	Nickel Plated	Board Lock Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic
EDAC Inc. 630-21W4240-7TD	Right Angle Through Hole	0	UL94 V-0	Solder	Mating Side (M3)	Female Sockets Receptacle	Coax Signal	4		21WA4 C DC	2		Gold	0.37 in		21		Combo D-Sub	Steel	Tin Plated	Board Lock Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic	Flash	Flash	17	Coax	4
EDAC Inc. 630-21W4640-3N4	Right Angle Through Hole	30 µin	UL94 V-0	Solder	Housing Shell (4-40)	Female Sockets Receptacle	Power Signal	4		21WA4 C DC	2	30A 5A	Gold	0.37 in	4	21	17	Combo D-Sub	Steel	Nickel Plated	Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic
EDAC Inc. 630-21W4640-5N5	Right Angle Through Hole	30 µin	UL94 V-0	Solder	Mating Side (4-40)	Female Sockets Receptacle	Coax Signal	4		21WA4 C DC	2		Gold	0.37 in		21		Combo D-Sub	Steel	Nickel Plated	Board Lock Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic			17	Coax	4
EDAC Inc. 630-21W1250-4T4	Right Angle Through Hole	0	UL94 V-0	Solder	Housing Shell (4-40)	Female Sockets Receptacle	Power Signal	3	21W1	B DB	2	40A 5A	Gold	0.37 in	1	21	20	Combo D-Sub	Steel	Tin Plated	Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 630-21W1250-4N4	Right Angle Through Hole	0	UL94 V-0	Solder	Housing Shell (4-40)	Female Sockets Receptacle	Power Signal	3	21W1	B DB	2	40A 5A	Gold	0.37 in	1	21	20	Combo D-Sub	Steel	Nickel Plated	Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 630-21W4650-3TB	Right Angle Through Hole	30 µin	UL94 V-0	Solder	Housing Shell (M3)	Female Sockets Receptacle	Power Signal	4		21WA4 C DC	2	30A 5A	Gold	0.37 in	4	21	17	Combo D-Sub	Steel	Tin Plated	Board Lock Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic
EDAC Inc. 630-21W4650-2NB	Right Angle Through Hole	30 µin	UL94 V-0	Solder	Housing Shell (M3)	Female Sockets Receptacle	Power Signal	4		21WA4 C DC	2	20A 5A	Gold	0.37 in	4	21	17	Combo D-Sub	Steel	Nickel Plated	Board Lock Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic
EDAC Inc. 630-21W1640-1NE	Right Angle Through Hole	30 µin	UL94 V-0	Solder	Mating Side (M3)	Female Sockets Receptacle	Power Signal	3	21W1	B DB	2	10A 5A	Gold	0.37 in	1	21	20	Combo D-Sub	Steel	Nickel Plated	Mounting Brackets	125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic
EDAC Inc. 630-21W4650-2TA	Right Angle Through Hole	30 µin	UL94 V-0	Solder	Board Side (M3)	Female Sockets Receptacle	Power Signal	4		21WA4 C DC	2	20A 5A	Gold	0.37 in	4	21	17	Combo D-Sub	Steel	Tin Plated		125 V	Copper Alloy	125 °C	-55 °C	Black	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

630-21W4640-5N5 | Datasheet
