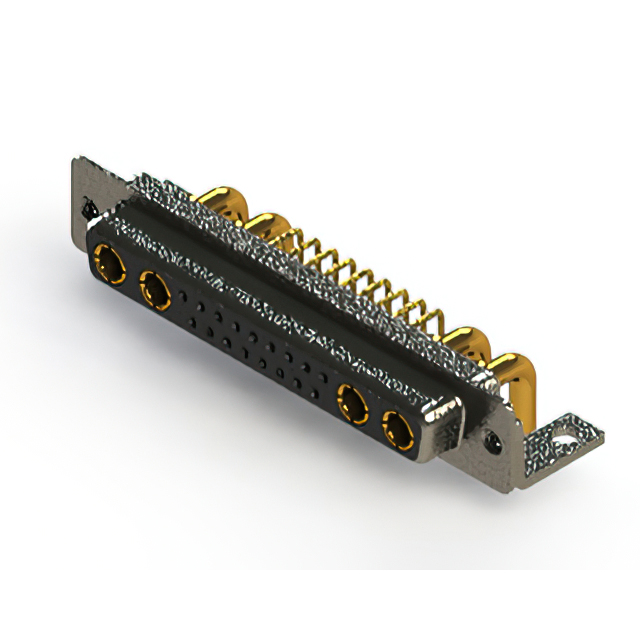

630-21W4640-3N4
ActiveEDAC Inc.
CONN D-SUB RCPT 21POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
630-21W4640-3N4
ActiveEDAC Inc.
CONN D-SUB RCPT 21POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-21W4640-3N4 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 30 A, 5 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Mounting Brackets |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 17 |
| Number of Positions [custom] | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 21WA4, 4 (DC, C) |
| Termination | Solder |
| Voltage Rating | 125 VDC |
630-21W Series
...
| Part | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Rows | Contact Material | Backset Spacing | Backset Spacing | Shell Size, Connector Layout | Contact Finish | Mounting Type | Current Rating (Amps) | Features | Color | Connector Style | Dielectric Material | Contact Type | Material Flammability Rating | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Voltage Rating | Termination | Number of Positions | Contact Finish Thickness | Number of Positions [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 20 | 21 | 1 | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 3 (DB B) - 21W1 | Gold | Through Hole Right Angle | 5 A 30 A | Board Lock Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Signal and Power | UL94 V-0 | Nickel Plated Steel | 0.76 Ám | 30 Áin | 4-40 | 125 VDC | Solder | ||||
EDAC Inc. | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 21WA4 4 (DC C) | Gold | Through Hole Right Angle | Board Lock Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Coax Signal | UL94 V-0 | M3 | 125 VDC | Solder | 21 | Flash | |||||||||
EDAC Inc. | 4 | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 21WA4 4 (DC C) | Gold | Through Hole Right Angle | 5 A 30 A | Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Signal and Power | UL94 V-0 | Nickel Plated Steel | 0.76 Ám | 30 Áin | Housing/Shell (4-40) | 125 VDC | Solder | 17 | |||||
EDAC Inc. | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 21WA4 4 (DC C) | Gold | Through Hole Right Angle | Board Lock Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Coax Signal | UL94 V-0 | Nickel Plated Steel | 0.76 Ám | 30 Áin | 4-40 | 125 VDC | Solder | 21 | |||||||
EDAC Inc. | 20 | 21 | 1 | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 3 (DB B) - 21W1 | Gold | Through Hole Right Angle | 5 A 40 A | Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Signal and Power | UL94 V-0 | Housing/Shell (4-40) | 125 VDC | Solder | Flash | ||||||
EDAC Inc. | 20 | 21 | 1 | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 3 (DB B) - 21W1 | Gold | Through Hole Right Angle | 5 A 40 A | Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Signal and Power | UL94 V-0 | Nickel Plated Steel | Housing/Shell (4-40) | 125 VDC | Solder | Flash | |||||
EDAC Inc. | 4 | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 21WA4 4 (DC C) | Gold | Through Hole Right Angle | 5 A 30 A | Board Lock Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Signal and Power | UL94 V-0 | 0.76 Ám | 30 Áin | Housing/Shell (M3) | 125 VDC | Solder | 17 | ||||||
EDAC Inc. | 4 | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 21WA4 4 (DC C) | Gold | Through Hole Right Angle | 5 A 20 A | Board Lock Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Signal and Power | UL94 V-0 | Nickel Plated Steel | 0.76 Ám | 30 Áin | Housing/Shell (M3) | 125 VDC | Solder | 17 | |||||
EDAC Inc. | 20 | 21 | 1 | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 3 (DB B) - 21W1 | Gold | Through Hole Right Angle | Mounting Brackets | Black | Combo D-Sub | Polyester Thermoplastic | Signal and Power | UL94 V-0 | Nickel Plated Steel | 0.76 Ám | 30 Áin | M3 | 125 VDC | Solder | 10A 5A | ||||
EDAC Inc. | 4 | -55 °C | 125 °C | Receptacle Female Sockets | 2 | Copper Alloy | 9.4 mm | 0.37 in | 21WA4 4 (DC C) | Gold | Through Hole Right Angle | 5 A 20 A | Black | Combo D-Sub | Polyester Thermoplastic | Signal and Power | UL94 V-0 | 0.76 Ám | 30 Áin | Board Side (M3) | 125 VDC | Solder | 17 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 250 | $ 30.10 | |
Description
General part information
630-21W Series
21 (17 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
