630-21W1640-3N5

Active

EDAC Inc.

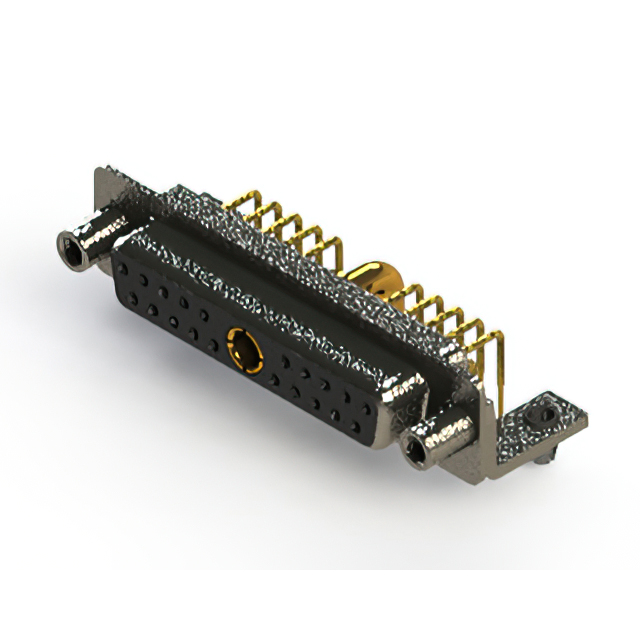

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DB-21W1, RECEPTACLE, 21 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

630-21W1640-3N5

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DB-21W1, RECEPTACLE, 21 CONTACTS

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-21W1640-3N5

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	20
Number of Positions [custom]	21
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 21W1
Termination	Solder
Voltage Rating	125 VDC

630-21W Series

...

Part	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Contact Material	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Contact Finish	Mounting Type	Current Rating (Amps)	Features	Color	Connector Style	Dielectric Material	Contact Type	Material Flammability Rating	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Voltage Rating	Termination	Number of Positions	Contact Finish Thickness	Number of Positions [custom]	Current Rating (Amps)
EDAC Inc. 630-21W1640-3N5	20	21	1	-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	3 (DB B) - 21W1	Gold	Through Hole Right Angle	5 A 30 A	Board Lock Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Signal and Power	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin	4-40	125 VDC	Solder
EDAC Inc. 630-21W4240-7TD				-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	21WA4 4 (DC C)	Gold	Through Hole Right Angle		Board Lock Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Coax Signal	UL94 V-0				M3	125 VDC	Solder	21	Flash
EDAC Inc. 630-21W4640-3N4			4	-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	21WA4 4 (DC C)	Gold	Through Hole Right Angle	5 A 30 A	Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Signal and Power	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin	Housing/Shell (4-40)	125 VDC	Solder			17
EDAC Inc. 630-21W4640-5N5				-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	21WA4 4 (DC C)	Gold	Through Hole Right Angle		Board Lock Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Coax Signal	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin	4-40	125 VDC	Solder	21
EDAC Inc. 630-21W1250-4T4	20	21	1	-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	3 (DB B) - 21W1	Gold	Through Hole Right Angle	5 A 40 A	Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Signal and Power	UL94 V-0				Housing/Shell (4-40)	125 VDC	Solder		Flash
EDAC Inc. 630-21W1250-4N4	20	21	1	-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	3 (DB B) - 21W1	Gold	Through Hole Right Angle	5 A 40 A	Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Signal and Power	UL94 V-0	Nickel Plated Steel			Housing/Shell (4-40)	125 VDC	Solder		Flash
EDAC Inc. 630-21W4650-3TB			4	-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	21WA4 4 (DC C)	Gold	Through Hole Right Angle	5 A 30 A	Board Lock Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Signal and Power	UL94 V-0		0.76 Ám	30 Áin	Housing/Shell (M3)	125 VDC	Solder			17
EDAC Inc. 630-21W4650-2NB			4	-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	21WA4 4 (DC C)	Gold	Through Hole Right Angle	5 A 20 A	Board Lock Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Signal and Power	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin	Housing/Shell (M3)	125 VDC	Solder			17
EDAC Inc. 630-21W1640-1NE	20	21	1	-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	3 (DB B) - 21W1	Gold	Through Hole Right Angle		Mounting Brackets	Black	Combo D-Sub	Polyester Thermoplastic	Signal and Power	UL94 V-0	Nickel Plated Steel	0.76 Ám	30 Áin	M3	125 VDC	Solder				10A 5A
EDAC Inc. 630-21W4650-2TA			4	-55 °C	125 °C	Receptacle Female Sockets	2	Copper Alloy	9.4 mm	0.37 in	21WA4 4 (DC C)	Gold	Through Hole Right Angle	5 A 20 A		Black	Combo D-Sub	Polyester Thermoplastic	Signal and Power	UL94 V-0		0.76 Ám	30 Áin	Board Side (M3)	125 VDC	Solder			17

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 20.82
Newark	Each	1	$ 27.37
		500	$ 25.09
		1000	$ 23.16
		2500	$ 22.30
		5000	$ 19.71

Description

General part information

630-21W Series

21 (20 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
