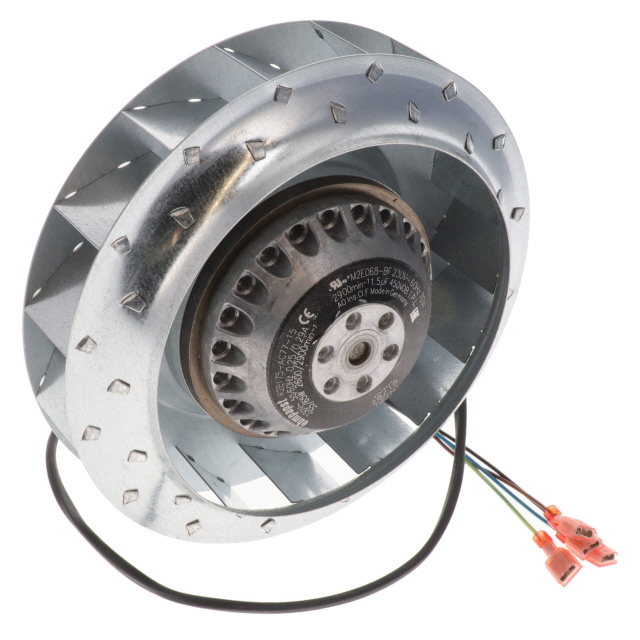

R2E175-AC77-15

Active

MOTORIZED IMPELLER

Active

MOTORIZED IMPELLER

Description

General part information

Blowers & Centrifugal Fans

Parameters and characteristics for this part

Specification	R2E175-AC77-15

Approval Agency	EAC, CE, CSA, UL, CCC
Bearing Type	Ball
Current Rating	0.3 A
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature	-13 °F
Power (Watts)	70 W
RPM	2900 RPM
Size / Dimension Diameter	175 mm
Size / Dimension Shape	Round
Termination	4 Wire Leads with QC Receptacles
Termination Leads Count	4
Termination Type	Wire Leads with QC Receptacles
Voltage - Rated	230 VAC

Blowers & Centrifugal Fans

Part	Material - Blade	Air Flow	Noise	Weight	Bearing Type	Voltage - Rated	Termination Leads Count	Termination Type	Termination	Size / Dimension Diameter	Size / Dimension Shape	Power (Watts)	Width	Fan Type	Current Rating	Operating Temperature	Features	RPM	Approval Agency	Ingress Protection
ebm-papst Inc. R2E175-AC77-18	Nylon PA Polyamide	320 CFM	70 dB	3 lb	Ball	230 VAC	2 leads	Wire Leads	2 Wire Leads	175 mm	Round	70 W	47 mm	Motorized Impellers
ebm-papst Inc. R2E175-AC91-05	Steel	270.7 CFM			Ball	400 V	4 leads	Wire Leads	4 Wire Leads	175 mm	Round	70 W	63 mm	Motorized Impellers	0.2 A	70 °C	Capacitor Thermal Overload Protection (TOP)	2850 RPM	CE	IP44
ebm-papst Inc. R2E175-AC77-15	Steel				Ball	230 VAC	4	Wire Leads with QC Receptacles	4 Wire Leads with QC Receptacles	175 mm	Round	70 W		Motorized Impellers	0.3 A	-13 °F	Capacitor Thermal Overload Protector (TOP)	2900 RPM	CCC CE CSA EAC UL	IP44
ebm-papst Inc. R2E175-AC79-22	Nylon PA Polyamide	320 CFM	70 dB	2 lbs	Ball	115 V	2 leads	Wire Leads	2 Wire Leads	175 mm	Round	80 W	47 mm	Motorized Impellers
ebm-papst Inc. R2E175-AO79-12	Nylon PA Polyamide	320 CFM	67 dB	3 lb	Ball	115 V	2 leads	Wire Leads	2 Wire Leads	175 mm	Round	75 W	62 mm	Motorized Impellers
