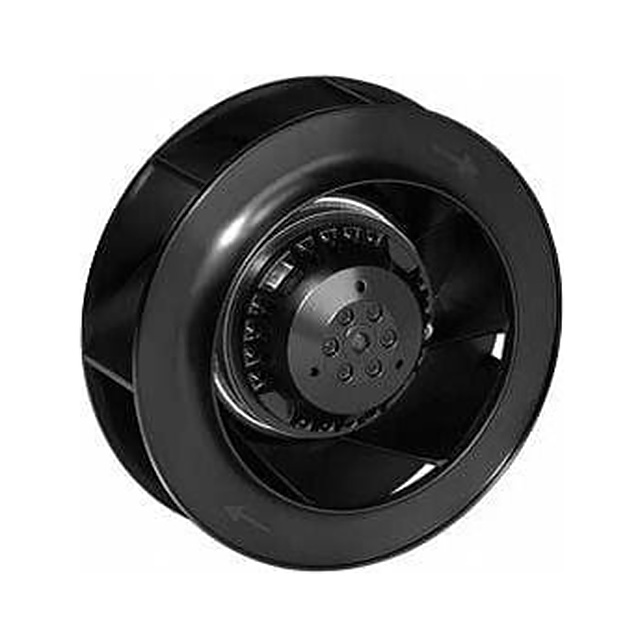

R2E175-AC91-05

Active

FAN BLOWER, IP44, CENTRIFUGAL, 400 VAC, AC, 175 MM, 63 MM, 245 CFM

Active

FAN BLOWER, IP44, CENTRIFUGAL, 400 VAC, AC, 175 MM, 63 MM, 245 CFM

Description

General part information

Blowers & Centrifugal Fans

Parameters and characteristics for this part

Specification	R2E175-AC91-05

Air Flow	270.7 CFM
Approval Agency	CE
Bearing Type	Ball
Current Rating	0.2 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protection (TOP), Capacitor
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature	70 °C
Power (Watts)	70 W
RPM	2850 RPM
Size / Dimension Diameter	175 mm
Size / Dimension Shape	Round
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	400 V
Width	63 mm

Blowers & Centrifugal Fans

Part	Material - Blade	Air Flow	Noise	Weight	Bearing Type	Voltage - Rated	Termination Leads Count	Termination Type	Termination	Size / Dimension Diameter	Size / Dimension Shape	Power (Watts)	Width	Fan Type	Current Rating	Operating Temperature	Features	RPM	Approval Agency	Ingress Protection
ebm-papst Inc. R2E175-AC77-18	Nylon PA Polyamide	320 CFM	70 dB	3 lb	Ball	230 VAC	2 leads	Wire Leads	2 Wire Leads	175 mm	Round	70 W	47 mm	Motorized Impellers
ebm-papst Inc. R2E175-AC91-05	Steel	270.7 CFM			Ball	400 V	4 leads	Wire Leads	4 Wire Leads	175 mm	Round	70 W	63 mm	Motorized Impellers	0.2 A	70 °C	Capacitor Thermal Overload Protection (TOP)	2850 RPM	CE	IP44
ebm-papst Inc. R2E175-AC77-15	Steel				Ball	230 VAC	4	Wire Leads with QC Receptacles	4 Wire Leads with QC Receptacles	175 mm	Round	70 W		Motorized Impellers	0.3 A	-13 °F	Capacitor Thermal Overload Protector (TOP)	2900 RPM	CCC CE CSA EAC UL	IP44
ebm-papst Inc. R2E175-AC79-22	Nylon PA Polyamide	320 CFM	70 dB	2 lbs	Ball	115 V	2 leads	Wire Leads	2 Wire Leads	175 mm	Round	80 W	47 mm	Motorized Impellers
ebm-papst Inc. R2E175-AO79-12	Nylon PA Polyamide	320 CFM	67 dB	3 lb	Ball	115 V	2 leads	Wire Leads	2 Wire Leads	175 mm	Round	75 W	62 mm	Motorized Impellers
