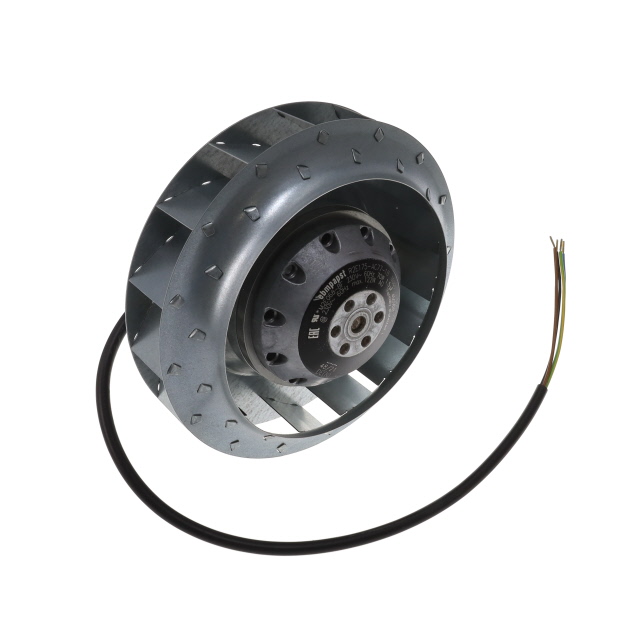

R2E175-AC77-18

Active

ebm-papst Inc.

FAN IMP MTRZD 175X47MM 230VAC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN IMP MTRZD 175X47MM 230VAC

Technical Specifications

Parameters and characteristics for this part

Blowers & Centrifugal Fans

Part	Voltage - Rated	Fan Type	Bearing Type	Size / Dimension [diameter]	Air Flow	Air Flow	Power (Watts)	Termination	Width [y]	Weight	Weight	Material - Blade	Noise	Ingress Protection	Approval Agency	Features	RPM	Current Rating (Amps)	Operating Temperature	Operating Temperature	Width [x]
ebm-papst Inc. R2E175-AC77-18	230 VAC	Motorized Impellers	Ball	175 mm Dia	320 CFM	8.96 m³/min	70 W	2 Wire Leads	47 mm	3 lb	1.4 kg	Nylon Polyamide (PA)	70 dB(A)
ebm-papst Inc. R2E175-AC91-05	400 VAC	Motorized Impellers	Ball	175 mm Dia	270.7 CFM	7.58 m³/min	70 W	4 Wire Leads	63 mm			Steel		IP44	CE	Capacitor Thermal Overload Protection (TOP)	2850 RPM	0.2 A	70 °C
ebm-papst Inc. R2E175-AC77-15	230 VAC	Motorized Impellers	Ball	175 mm Dia			70 W					Steel		IP44	CCC CE CSA EAC UL	Capacitor Thermal Overload Protector (TOP)	2900 RPM		-13 F	-25 C
ebm-papst Inc. R2E175-AO79-12	115 VAC	Motorized Impellers	Ball	175 mm Dia	320 CFM	8.96 m³/min	75 W	2 Wire Leads		3 lb	1.4 kg	Nylon Polyamide (PA)	67 dB								62 mm
