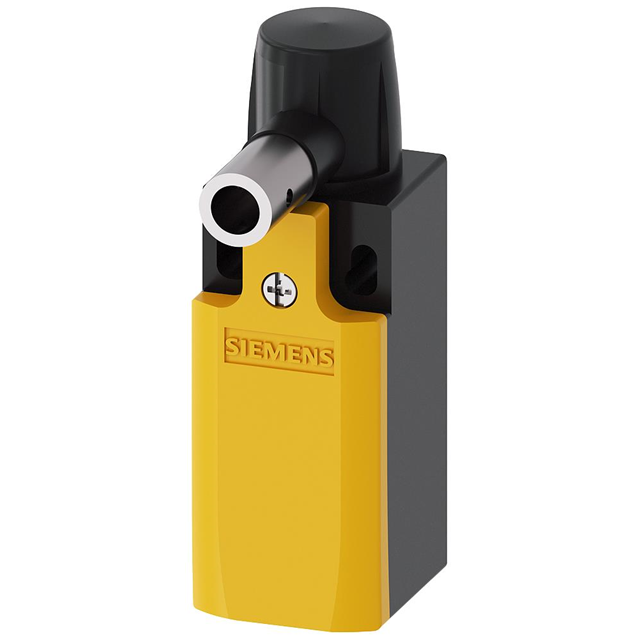

Specification	3SE52320HU21

Actuator Type	Shaft
Approval Agency	EAC, CE, CSA, UL, CCC
Circuit	DPST-NO/NC
Conduit Thread Diameter	20 mm
Conduit Thread Pitch	1.5 mm
Current Rating	6 A, 3 A
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Termination Style	Screw Terminal
Type	Hinge
Voltage Rating (AC)	120 VAC
Voltage Rating (DC)	24 VDC

3SE5232 Series

Part	Mounting Type	Ingress Protection IP Rating	Ingress Protection Description	Circuit	Voltage Rating - DC	Current Rating	Actuator Type	Termination Style	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Mechanical Life (Cycles)	Electrical Life (Cycles)	Operating Force	For Use With/Related Products	Accessory Type
Siemens 3SE52320BC051CA0	Chassis Mount	IP65	Dust Tight Water Resistant	DPST-NO/NC	24 V	3 A 6 A	Round (Pin Plunger)	Screw Terminal	120 V	85 °C	-25 °C	Off-Mom On-Mom	15000000 Cycles	100000 Cycles	2039 gf
Siemens 3SE52320CE121CA0	Chassis Mount	IP65	Dust Tight Water Resistant	DPST-NO/NC	125 V	6 A 550 mA	Lever Roller	Screw Terminal	125 V			Off-Mom On-Mom	15000000 Cycles	100000 Cycles	1020 gf
Siemens 3SE52320CC051CA0	Chassis Mount	IP65	Dust Tight Water Resistant	DPST-NO/NC	24 V	3 A 6 A	Round (Pin Plunger)	Screw Terminal	120 V	85 °C	-25 °C	Off-Mom On-Mom	15000000 Cycles	100000 Cycles	2039 gf
Siemens 3SE52320LE10	Chassis Mount	IP65	Dust Tight Water Resistant	3PST-2NC/1NO	24 V	3 A 6 A	Roller Top Rotary	Screw Terminal	120 V	85 °C	-25 °C	Off-Mom On-Mom	15000000 Cycles	100000 Cycles	1020 gf
Siemens 3SE52320LF10	Chassis Mount	IP65	Dust Tight Water Resistant	3PST-2NC/1NO	24 V	3 A 6 A	Roller Top Rotary	Screw Terminal	120 V	85 °C	-25 °C	Off-Mom On-Mom	15000000 Cycles	100000 Cycles	1020 gf
Siemens 3SE52320HF10	Chassis Mount	IP65	Dust Tight Water Resistant	DPST-NO/NC	125 V	6 A 550 mA	Lever Roller	Screw Terminal	125 V			Off-Mom On-Mom	15000000 Cycles	100000 Cycles	1020 gf
Siemens 3SE52320CK311AJ0	Chassis Mount	IP65	Dust Tight Water Resistant	DPST-NO/NC	24 V	3 A 6 A	Roller Side Rotary	Screw Terminal	120 V	85 °C	-40 °C	Off-Mom On-Mom	15000000 Cycles	100000 Cycles
Siemens 3SE52320AC051CA0																Snap Action Switches	Enclosure
Siemens 3SE52320KD10	Chassis Mount	IP65	Dust Tight Water Resistant	3PST-2NC/1NO	24 V	3 A 6 A	Roller Plunger	Screw Terminal	120 V	85 °C	-25 °C	Off-Mom On-Mom	15000000 Cycles	100000 Cycles	2039 gf
Siemens 3SE52320MC05	Chassis Mount	IP65	Dust Tight Water Resistant	3PST-2NC/1NO	24 V	3 A 6 A	Round (Pin Plunger)	Screw Terminal	120 V	85 °C	-25 °C	Off-Mom On-Mom	15000000 Cycles	100000 Cycles	2039 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3SE5 Position and Safety Switches Selection Guide

3SE5 Position and Safety Switches Sales Guide

3SE5 Position and Safety Switches Brochure

3SE52320HU21 | Datasheet
