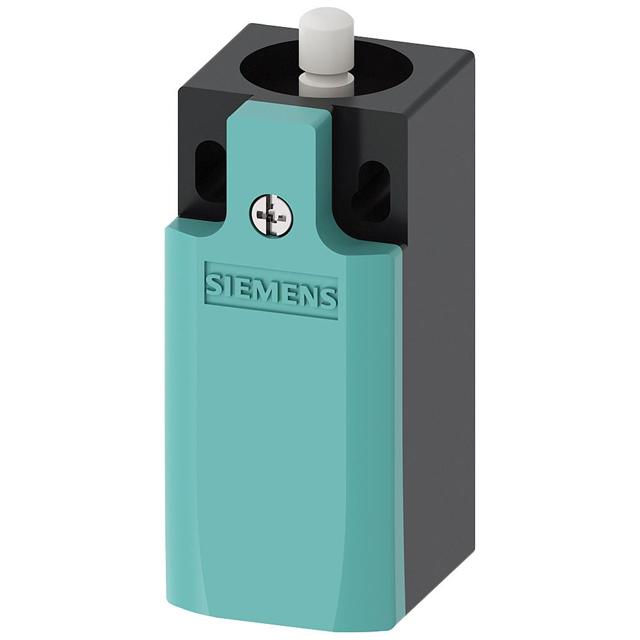

3SE52320BC051CA0
ActiveSiemens
SWITCH LIMIT DPST 6A 120V
Deep-Dive with AI
Search across all available documentation for this part.
3SE52320BC051CA0
ActiveSiemens
SWITCH LIMIT DPST 6A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SE52320BC051CA0 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 15000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 2039 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 24 V |
3SE5232 Series
| Part | Operating Force | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Actuator Type | Electrical Life | Switch Function | Voltage Rating - AC | Voltage Rating - DC | Termination Style | Circuit | Mounting Type | Current Rating (Amps) | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | 2039 gf | IP65 - Dust Tight Water Resistant | -25 °C | 85 °C | 15000000 Cycles | Round (Pin Plunger) | 100000 Cycles | Off-Mom On-Mom | 120 V | 24 V | Screw Terminal | DPST-NO/NC | Chassis Mount | 3 A 6 A | ||
Siemens | 1020 gf | IP65 - Dust Tight Water Resistant | 15000000 Cycles | Lever Roller | 100000 Cycles | Off-Mom On-Mom | 125 V | 125 VDC | Screw Terminal | DPST-NO/NC | Chassis Mount | 6 A 550 mA | ||||
Siemens | 2039 gf | IP65 - Dust Tight Water Resistant | -25 °C | 85 °C | 15000000 Cycles | Round (Pin Plunger) | 100000 Cycles | Off-Mom On-Mom | 120 V | 24 V | Screw Terminal | DPST-NO/NC | Chassis Mount | 3 A 6 A | ||
Siemens | 1020 gf | IP65 - Dust Tight Water Resistant | -25 °C | 85 °C | 15000000 Cycles | Top Rotary Roller | 100000 Cycles | Off-Mom On-Mom | 120 V | 24 V | Screw Terminal | 3PST-2NC/1NO | Chassis Mount | 3 A 6 A | ||
Siemens | 1020 gf | IP65 - Dust Tight Water Resistant | -25 °C | 85 °C | 15000000 Cycles | Top Rotary Roller | 100000 Cycles | Off-Mom On-Mom | 120 V | 24 V | Screw Terminal | 3PST-2NC/1NO | Chassis Mount | 3 A 6 A | ||
Siemens | 1020 gf | IP65 - Dust Tight Water Resistant | 15000000 Cycles | Lever Roller | 100000 Cycles | Off-Mom On-Mom | 125 V | 125 VDC | Screw Terminal | DPST-NO/NC | Chassis Mount | 6 A 550 mA | ||||
Siemens | Snap Action Switches | Enclosure | ||||||||||||||
Siemens | 2039 gf | IP65 - Dust Tight Water Resistant | -25 °C | 85 °C | 15000000 Cycles | Roller Plunger | 100000 Cycles | Off-Mom On-Mom | 120 V | 24 V | Screw Terminal | 3PST-2NC/1NO | Chassis Mount | 3 A 6 A | ||
Siemens | 2039 gf | IP65 - Dust Tight Water Resistant | -25 °C | 85 °C | 15000000 Cycles | Round (Pin Plunger) | 100000 Cycles | Off-Mom On-Mom | 120 V | 24 V | Screw Terminal | 3PST-2NC/1NO | Chassis Mount | 3 A 6 A | ||
Siemens | 2039 gf | IP40 | -25 °C | 85 °C | 15000000 Cycles | Round (Pin Plunger) | 100000 Cycles | Off-Mom On-Mom | 120 V | 24 V | Screw Terminal | DPST-NO/NC | Chassis Mount | 3 A 6 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 103.36 | |
Description
General part information
3SE5232 Series
Switch DPST-NO/NC Chassis Mount
