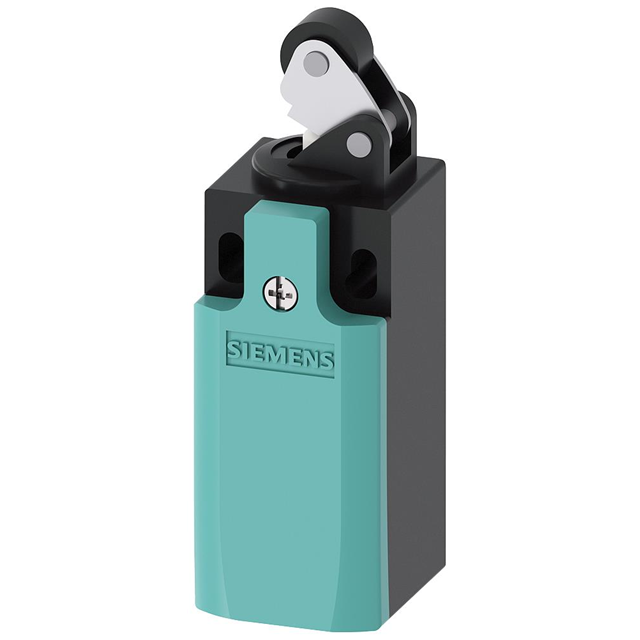

3SE52320LE10

Active

Siemens

SWITCH LIMIT 3PST 6A 120V RLR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3SE5 Position and Safety Switches Selection Guide +2

3SE52320LE10

Active

Siemens

SWITCH LIMIT 3PST 6A 120V RLR

Deep-Dive with AI

DocumentsDatasheet 3SE5 Position and Safety Switches Selection Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SE52320LE10

Actuator Type	Top Rotary, Roller
Circuit	3PST-2NC/1NO
Current Rating (Amps)	3 A, 6 A
Electrical Life	100000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	1020 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom, On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V

3SE5232 Series

Part	Operating Force	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Actuator Type	Electrical Life	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Termination Style	Circuit	Mounting Type	Current Rating (Amps)	For Use With/Related Products	Accessory Type
Siemens 3SE52320BC051CA0	2039 gf	IP65 - Dust Tight Water Resistant	-25 °C	85 °C	15000000 Cycles	Round (Pin Plunger)	100000 Cycles	Off-Mom On-Mom	120 V	24 V	Screw Terminal	DPST-NO/NC	Chassis Mount	3 A 6 A
Siemens 3SE52320CE121CA0	1020 gf	IP65 - Dust Tight Water Resistant			15000000 Cycles	Lever Roller	100000 Cycles	Off-Mom On-Mom	125 V	125 VDC	Screw Terminal	DPST-NO/NC	Chassis Mount	6 A 550 mA
Siemens 3SE52320CC051CA0	2039 gf	IP65 - Dust Tight Water Resistant	-25 °C	85 °C	15000000 Cycles	Round (Pin Plunger)	100000 Cycles	Off-Mom On-Mom	120 V	24 V	Screw Terminal	DPST-NO/NC	Chassis Mount	3 A 6 A
Siemens 3SE52320LE10	1020 gf	IP65 - Dust Tight Water Resistant	-25 °C	85 °C	15000000 Cycles	Top Rotary Roller	100000 Cycles	Off-Mom On-Mom	120 V	24 V	Screw Terminal	3PST-2NC/1NO	Chassis Mount	3 A 6 A
Siemens 3SE52320LF10	1020 gf	IP65 - Dust Tight Water Resistant	-25 °C	85 °C	15000000 Cycles	Top Rotary Roller	100000 Cycles	Off-Mom On-Mom	120 V	24 V	Screw Terminal	3PST-2NC/1NO	Chassis Mount	3 A 6 A
Siemens 3SE52320HF10	1020 gf	IP65 - Dust Tight Water Resistant			15000000 Cycles	Lever Roller	100000 Cycles	Off-Mom On-Mom	125 V	125 VDC	Screw Terminal	DPST-NO/NC	Chassis Mount	6 A 550 mA
Siemens 3SE52320AC051CA0															Snap Action Switches	Enclosure
Siemens 3SE52320KD10	2039 gf	IP65 - Dust Tight Water Resistant	-25 °C	85 °C	15000000 Cycles	Roller Plunger	100000 Cycles	Off-Mom On-Mom	120 V	24 V	Screw Terminal	3PST-2NC/1NO	Chassis Mount	3 A 6 A
Siemens 3SE52320MC05	2039 gf	IP65 - Dust Tight Water Resistant	-25 °C	85 °C	15000000 Cycles	Round (Pin Plunger)	100000 Cycles	Off-Mom On-Mom	120 V	24 V	Screw Terminal	3PST-2NC/1NO	Chassis Mount	3 A 6 A
Siemens 3SE52320HC051AB4	2039 gf	IP40	-25 °C	85 °C	15000000 Cycles	Round (Pin Plunger)	100000 Cycles	Off-Mom On-Mom	120 V	24 V	Screw Terminal	DPST-NO/NC	Chassis Mount	3 A 6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 115.84
