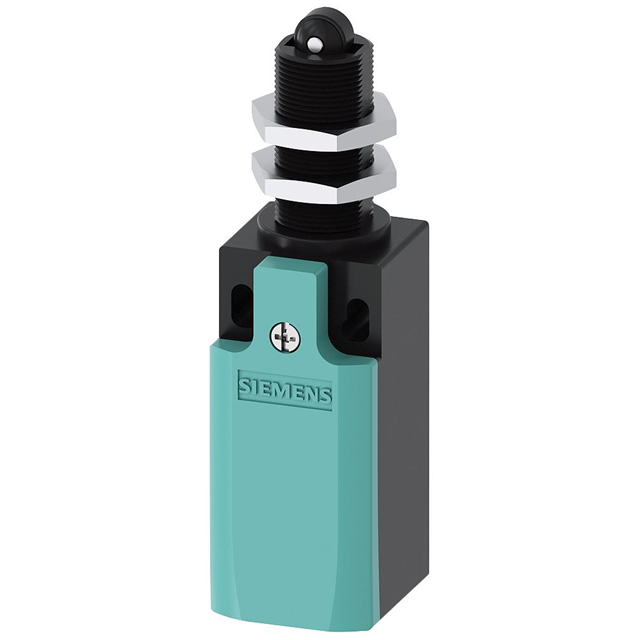

3SE52320KD10 - MFG_3SE52320HD10

3SE52320KD10

Active
Siemens

SWITCH LIMIT 3PST 6A 120V PLNGR

Deep-Dive with AI

Search across all available documentation for this part.

Documents3SE5 Position and Safety Switches Selection Guide3SE5 Position and Safety Switches Brochure+2
3SE52320KD10 - MFG_3SE52320HD10

3SE52320KD10

Active
Siemens

SWITCH LIMIT 3PST 6A 120V PLNGR

Deep-Dive with AI

Documents3SE5 Position and Safety Switches Selection Guide3SE5 Position and Safety Switches Brochure+2

Technical Specifications

Parameters and characteristics for this part

Specification3SE52320KD10
Actuator TypeRoller Plunger
Circuit3PST-2NC/1NO
Current Rating (Amps)3 A, 6 A
Electrical Life100000 Cycles
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Mechanical Life15000000 Cycles
Mounting TypeChassis Mount
Operating Force2039 gf
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Switch FunctionOff-Mom, On-Mom
Termination StyleScrew Terminal
Voltage Rating - AC120 V
Voltage Rating - DC24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 130.64

Description

General part information

3SE5232 Series

Switch 3PST-2NC/1NO Chassis Mount
