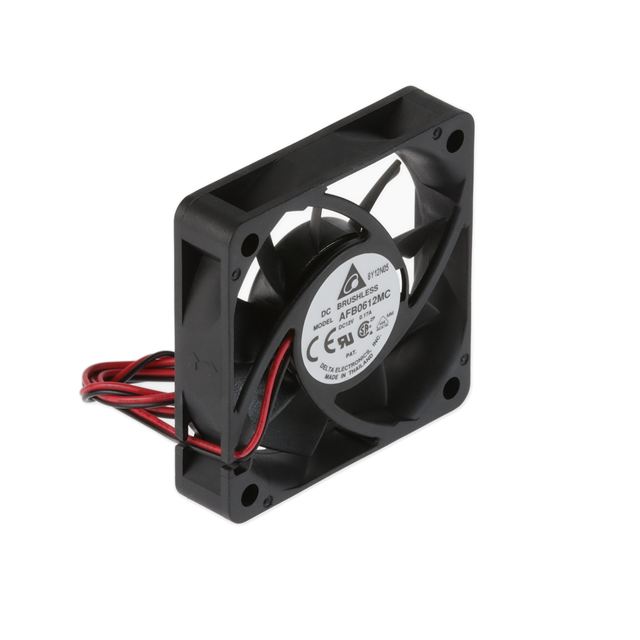

AFB0612MC

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.8V 18.15CFM 28DB 60 X 60 X 13MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

AFB0612MC

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.8V 18.15CFM 28DB 60 X 60 X 13MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0612MC

Air Flow	0.51 m³/min
Air Flow	18.2 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	110 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.32 W
RPM	3600 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.119 in H2O
Static Pressure	29.6 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.074 lb
Weight	33.56 g
Width [y]	13 mm

AFB0612 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Features	Approval Agency	Air Flow	Air Flow	RPM	Current Rating (Amps)	Termination	Noise	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Power (Watts)	Bearing Type	Width [y]	Material - Blade	Static Pressure	Static Pressure	Weight	Weight	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Width [x]
Delta Electronics AFB0612VH-AF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	30.5 CFM	0.854 m³/min	5500 RPM	0.23 A	3 Wire Leads	42.5 dB(A)	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2.76 W	Ball	25.4 mm	Plastic	85.9 Pa	0.345 in H2O	80 g	0.176 lb	Plastic
Delta Electronics AFB0612EHD-AF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	35.2 CFM	0.986 m³/min	6600 RPM	0.31 A	3 Wire Leads	45 dB(A)	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	3.72 W	Ball	20 mm	Plastic	120.6 Pa	0.484 in H2O	56.25 g	0.124 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612LC	60 mm	60 mm	70000 Hrs		CE CSA UL VDE	15.4 CFM	0.431 m³/min	3000 RPM		2 Wire Leads	24 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial		Ball	13 mm	Plastic	20.6 Pa	0.083 in H2O	33.56 g	0.074 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612MC	60 mm	60 mm	70000 Hrs		CE CSA UL VDE	18.2 CFM	0.51 m³/min	3600 RPM	110 mA	2 Wire Leads	28 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.32 W	Ball	13 mm	Plastic	29.6 Pa	0.119 in H2O	33.56 g	0.074 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612DH-AF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	50.4 CFM	1.41 mł/min	9000 RPM	0.84 A	3 Wire Leads	55 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	10.08 W	Ball	25.4 mm	Plastic	230.7 Pa	0.926 in H2O	80 g	0.176 lb	Plastic	7 V	13.2 VDC
Delta Electronics AFB0612HHD-R00	60 mm	60 mm	70000 Hrs	Locked Rotor Sensor	CE CSA UL VDE	18.4 CFM	0.515 mł/min	4400 RPM	150 mA	3 Wire Leads	31 dB(A)	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.8 W	Ball	20 mm	Plastic	57 Pa	0.229 in H2O	62.14 g	0.137 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612EH-AB	60 mm	60 mm	70000 Hrs		CE CSA UL VDE	38.4 CFM	1.08 m³/min	6800 RPM	0.38 A	2 Wire Leads	46.5 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	4.56 W	Ball	25.4 mm	Plastic	135.5 Pa	0.544 in H2O	80 g	0.176 lb	Plastic
Delta Electronics AFB0612EH-ABF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	38.4 CFM	1.08 m³/min	6800 RPM	0.38 A	3 Wire Leads	46.5 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	4.56 W	Ball	25.4 mm	Plastic	135.5 Pa	0.544 in H2O	80 g	0.176 lb	Plastic
Delta Electronics AFB0612SHE-AF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	55.3 CFM	1.55 m³/min	10000 RPM	880 mA	3 Wire Leads	57 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	10.56 W	Ball	38 mm	Plastic	303.2 Pa	1.217 in H2O	117.03 g	0.258 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612HHB-F00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	17.3 CFM	0.484 mł/min	4500 RPM	120 mA	3 Wire Leads	35 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.44 W	Ball		Plastic	48.6 Pa	0.195 in H2O	44.45 g	0.098 lb	Plastic	7 V	13.8 VDC	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	270	$ 9.52
Newark	Each	1	$ 13.00
		500	$ 10.48
		1500	$ 9.20

Description

General part information

AFB0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 18.2 CFM (0.510m³/min) 2 Wire Leads
