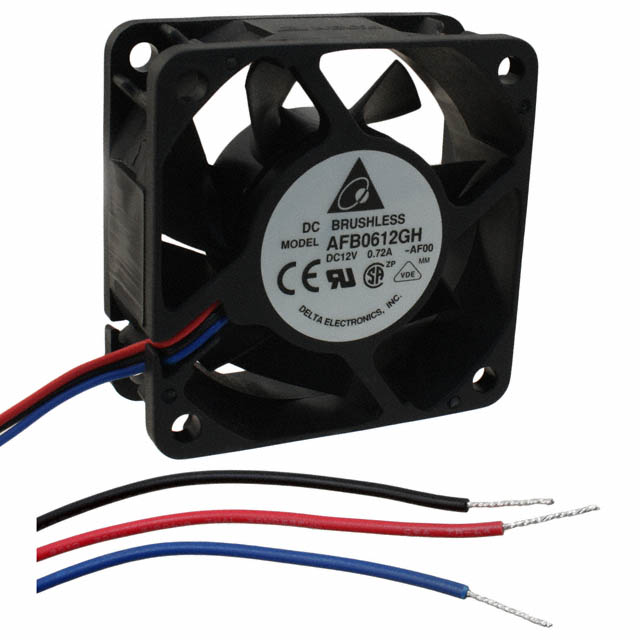

AFB0612GH-AF00
ActiveDelta Electronics
FAN AXIAL 60X25.4MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB0612GH-AF00
ActiveDelta Electronics
FAN AXIAL 60X25.4MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0612GH-AF00 |
|---|---|
| Air Flow | 42 CFM |
| Air Flow | 1.18 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.55 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 50.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 6.6 W |
| RPM | 7500 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 159.4 Pa |
| Static Pressure | 0.64 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 80 g |
| Weight | 0.176 lb |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.26 | |
| 10 | $ 19.34 | |||
| 25 | $ 17.50 | |||
| 50 | $ 16.12 | |||
| 180 | $ 14.46 | |||
| 360 | $ 13.36 | |||
| 540 | $ 12.44 | |||
Description
General part information
AFB0612GH-AF00
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 42.0 CFM (1.18m³/min) 3 Wire Leads
