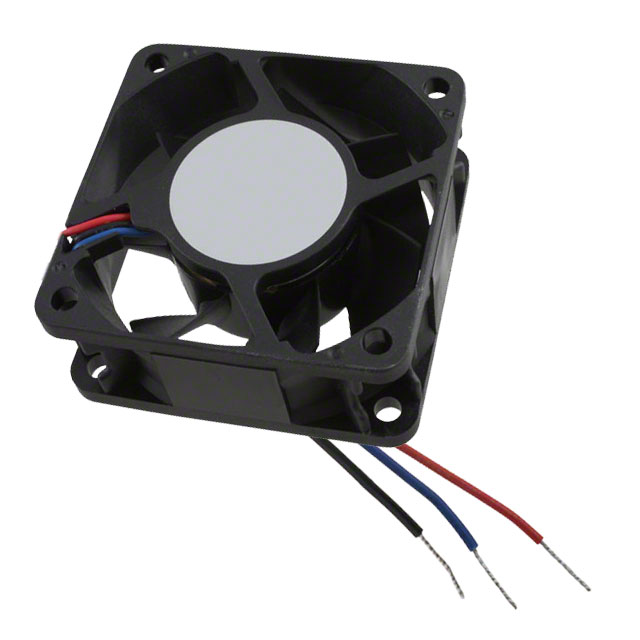

Specification	AFB0612DH-AF00

Air Flow	50.4 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	0.84 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	55 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	10.08 W
RPM	9000 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	0.926 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.2 VDC
Voltage Range (Min)	7 V
Weight	0.176 lb
Width	1 in

AFB0612 Series

Part	Approval Agency	Voltage - Rated	Features	Noise	Width	RPM	Static Pressure	Fan Type	Air Flow	Weight	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Bearing Type	Termination Leads Count	Termination Type	Termination	Material - Frame	Voltage Range (Max)	Voltage Range (Min)	Material - Blade	Lifetime	Current Rating	Ingress Protection IP Rating	Ingress Protection Description
Delta Electronics AFB0612EHD-AF00	CE CSA UL VDE	12 VAC	Locked Rotor Protection Speed Sensor (Tach)	45 dB	20 mm	6600 RPM	0.484 in H2O	Tubeaxial	35.2 CFM	0.124 lb	158 °F	14 °F	3.72 W	60 mm	Square	60 mm	Ball	3	Wire Leads	3 Wire Leads	Plastic	13.8 VDC	7 V	Plastic	70000 Hrs	0.31 A
Delta Electronics AFB0612VHD-AF00	CE CSA UL VDE	12 VAC	Locked Rotor Protection Speed Sensor (Tach)	41 dB	20 mm	5400 RPM	0.278 in H2O	Tubeaxial	29.1 CFM	0.124 lb	158 °F	14 °F	2.28 W	60 mm	Square	60 mm	Ball	3	Wire Leads	3 Wire Leads	Plastic	13.8 VDC	7 V	Plastic	70000 Hrs	190 mA
Delta Electronics AFB0612GH-AF00	CE CSA UL VDE	12 VAC	Locked Rotor Protection Speed Sensor (Tach)	50.5 dB	1 in	7500 RPM	0.64 in H2O	Tubeaxial	42 CFM	0.176 lb	158 °F	14 °F	6.6 W	60 mm	Square	60 mm	Ball	3	Wire Leads	3 Wire Leads	Plastic	13.2 VDC	7 V	Plastic	70000 Hrs	0.55 A
Delta Electronics AFB0612MC	CE CSA UL VDE	12 VAC	Locked Rotor Protection	28 dB	13 mm	3600 RPM	0.119 in H2O	Tubeaxial	18.2 CFM	0.074 lb	158 °F	14 °F	1.32 W	60 mm	Square	60 mm	Ball	2 leads	Wire Leads	2 Wire Leads	Plastic	13.8 VDC	7 V	Plastic	70000 Hrs	110 mA
Delta Electronics AFB0612H-EP	CE CSA UL VDE	12 VAC	GR-487 (Salt Fog Protection) Locked Rotor Protection	34 dB	1 in	4250 RPM	0.211 in H2O	Tubeaxial	22.6 CFM	0.176 lb	158 °F	14 °F	1.68 W	60 mm	Square	60 mm	Ball	2 leads	Wire Leads	2 Wire Leads	Plastic	13.8 VDC	5 V	Plastic	70000 Hrs	140 mA	IP56	Dust Protected Water Resistant
Delta Electronics AFB0612DH-AF00	CE CSA UL VDE	12 VAC	Locked Rotor Protection Speed Sensor (Tach)	55 dB	1 in	9000 RPM	0.926 in H2O	Tubeaxial	50.4 CFM	0.176 lb	158 °F	14 °F	10.08 W	60 mm	Square	60 mm	Ball	3	Wire Leads	3 Wire Leads	Plastic	13.2 VDC	7 V	Plastic	70000 Hrs	0.84 A
Delta Electronics AFB0612HHD-R00	CE CSA UL VDE	12 VAC	Locked Rotor Sensor	31 dB	20 mm	4400 RPM	0.229 in H2O	Tubeaxial	18.4 CFM	0.137 lb	158 °F	14 °F	1.8 W	60 mm	Square	60 mm	Ball	3	Wire Leads	3 Wire Leads	Plastic	13.8 VDC	7 V	Plastic	70000 Hrs	150 mA
Delta Electronics AFB0612DH-TP11	CE CSA UL VDE	12 VAC	Locked Rotor Protection PWM Control Speed Sensor (Tach)	55 dB	1 in	9000 RPM	0.926 in H2O	Tubeaxial	50.4 CFM	0.176 lb	158 °F	14 °F	10.08 W	60 mm	Square	60 mm	Ball	4 leads	Wire Leads	4 Wire Leads	Plastic	13.2 VDC	10.8 VDC	Plastic	70000 Hrs	0.84 A
Delta Electronics AFB0612EH-AB	CE CSA UL VDE	12 VAC	Locked Rotor Protection	46.5 dB	1 in	6800 RPM	0.544 in H2O	Tubeaxial	38.4 CFM	0.176 lb	158 °F	14 °F	4.56 W	60 mm	Square	60 mm	Ball	2 leads	Wire Leads	2 Wire Leads	Plastic	13.8 VDC	4 VDC	Plastic	70000 Hrs	0.38 A
Delta Electronics AFB0612EH-ABF00	CE CSA UL VDE	12 VAC	Locked Rotor Protection Speed Sensor (Tach)	46.5 dB	1 in	6800 RPM	0.544 in H2O	Tubeaxial	38.4 CFM	0.176 lb	158 °F	14 °F	4.56 W	60 mm	Square	60 mm	Ball	3	Wire Leads	3 Wire Leads	Plastic	13.8 VDC	4 VDC	Plastic	70000 Hrs	0.38 A
