APR-I Series

Part	Breaking Capacity	Mounting Type	Fuse Type	Response Time	Current Rating	Color	Voltage Rating - DC	Approval Agency	Package / Case	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length
OptiFuse APR-I-20A	1 kA	Requires Holder	Automotive	Fast Blow	20 A	Yellow	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
OptiFuse APR-I-15A	1 kA	Requires Holder	Automotive	Fast Blow	15 A	Blue	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
OptiFuse APR-I-35A	1 kA	Requires Holder	Automotive	Fast Blow	35 A	Blue Green	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
OptiFuse APR-I-7.5A	1 kA	Requires Holder	Automotive	Fast Blow	7.5 A	Brown	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
OptiFuse APR-I-30A	1 kA	Requires Holder	Automotive	Fast Blow	30 A	Green	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
OptiFuse APR-I-5A	1 kA	Requires Holder	Automotive	Fast Blow	5 A	Tan	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in

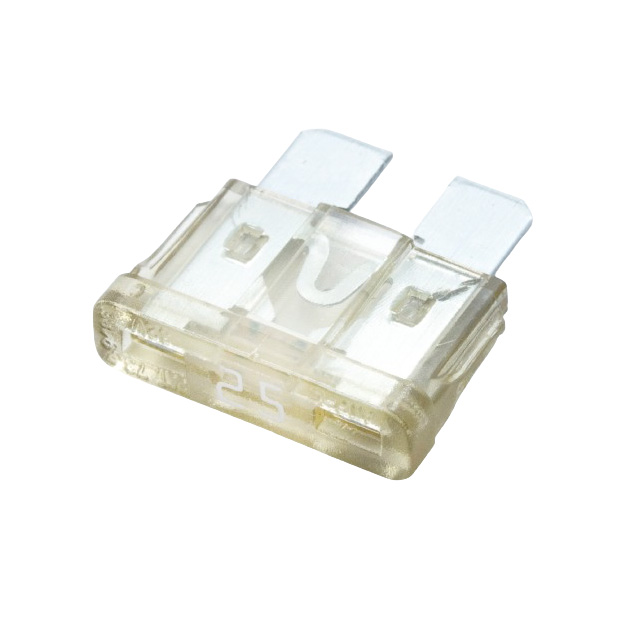

OptiFuse APR-I-25A	1 kA	Requires Holder	Automotive	Fast Blow	25 A	Clear	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
OptiFuse APR-I-2A	1 kA	Requires Holder	Automotive	Fast Blow	2 A		32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
OptiFuse APR-I-10A	1 kA	Requires Holder	Automotive	Fast Blow	10 A	Red	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
OptiFuse APR-I-4A	1 kA	Requires Holder	Automotive	Fast Blow	4 A	Pink	32 V	ISO SAE	ATO/ATC Blade	0.197 in	0.494 in	0.76 in
