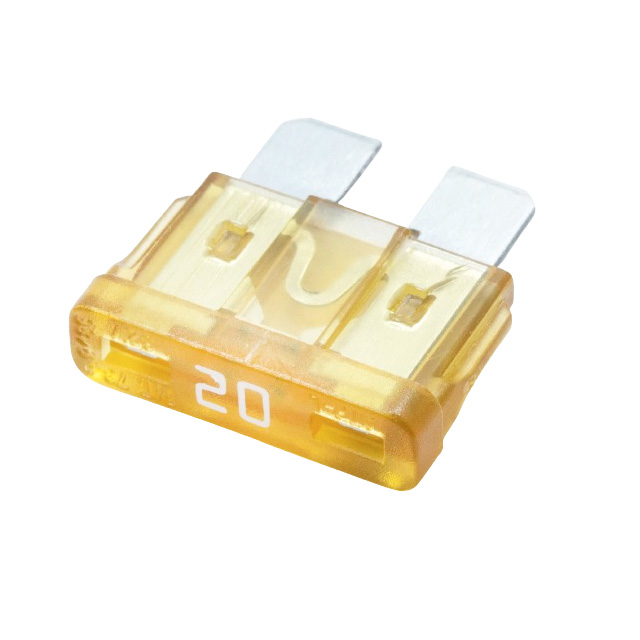

APR-I-20A

Active

OptiFuse

FUSE AUTO 20A 32VDC BLADE ATO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 20A 32VDC BLADE ATO

Technical Specifications

Parameters and characteristics for this part

Specification	APR-I-20A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Yellow
Current Rating (Amps)	20 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Response Time	Color	Approval Agency	Mounting Type	Current Rating (Amps)	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Package / Case	Fuse Type
OptiFuse APR-I-20A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Yellow	ISO SAE	Requires Holder	20 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-35A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Blue Green	ISO SAE	Requires Holder	35 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-7.5A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Brown	ISO SAE	Requires Holder	7.5 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-30A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Green	ISO SAE	Requires Holder	30 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-5A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Tan	ISO SAE	Requires Holder	5 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-25A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Clear	ISO SAE	Requires Holder	25 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-2A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow		ISO SAE	Requires Holder	2 A	32 V	1 kA	ATC ATO Blade	Automotive
OptiFuse APR-I-4A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	Fast Blow	Pink	ISO SAE	Requires Holder	4 A	32 V	1 kA	ATC ATO Blade	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
