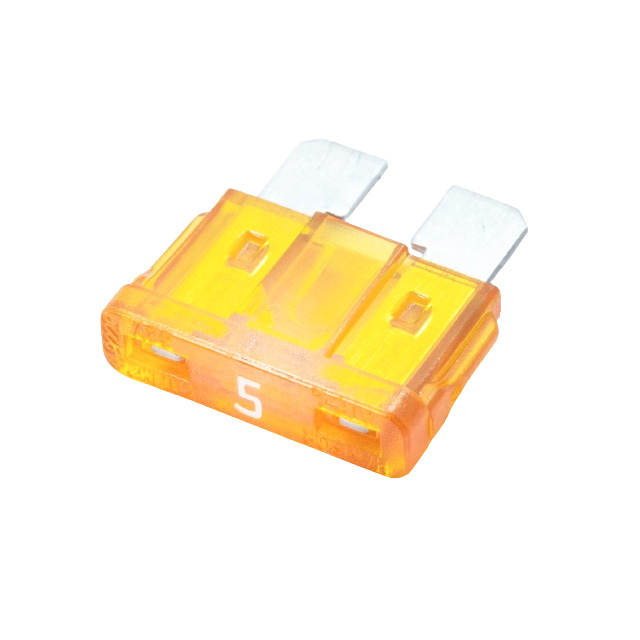

APR-I-5A
ActiveOptiFuse
FUSE AUTO 5A 32VDC BLADE ATO/ATC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APR-I-5A
ActiveOptiFuse
FUSE AUTO 5A 32VDC BLADE ATO/ATC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APR-I-5A |
|---|---|
| Approval Agency | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Tan |
| Current Rating (Amps) | 5 A |
| Fuse Type | Automotive |
| Mounting Type | Requires Holder |
| Package / Case | ATO, Blade, ATC |
| Response Time | Fast Blow |
| Size / Dimension [x] | 19.3 mm |
| Size / Dimension [x] | 0.76 " |
| Size / Dimension [y] | 0.197 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [z] | 0.494 in |
| Size / Dimension [z] | 12.54 mm |
| Voltage Rating - DC | 32 V |
APR-I Series
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Response Time | Color | Approval Agency | Mounting Type | Current Rating (Amps) | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Package / Case | Fuse Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Fast Blow | Yellow | ISO SAE | Requires Holder | 20 A | 32 V | 1 kA | ATC ATO Blade | Automotive |
OptiFuse | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Fast Blow | Blue Green | ISO SAE | Requires Holder | 35 A | 32 V | 1 kA | ATC ATO Blade | Automotive |
OptiFuse | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Fast Blow | Brown | ISO SAE | Requires Holder | 7.5 A | 32 V | 1 kA | ATC ATO Blade | Automotive |
OptiFuse | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Fast Blow | Green | ISO SAE | Requires Holder | 30 A | 32 V | 1 kA | ATC ATO Blade | Automotive |
OptiFuse | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Fast Blow | Tan | ISO SAE | Requires Holder | 5 A | 32 V | 1 kA | ATC ATO Blade | Automotive |
OptiFuse | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Fast Blow | Clear | ISO SAE | Requires Holder | 25 A | 32 V | 1 kA | ATC ATO Blade | Automotive |
OptiFuse | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Fast Blow | ISO SAE | Requires Holder | 2 A | 32 V | 1 kA | ATC ATO Blade | Automotive | |
OptiFuse | 0.494 in | 0.197 " | 12.54 mm | 19.3 mm | 0.76 " | 5 mm | Fast Blow | Pink | ISO SAE | Requires Holder | 4 A | 32 V | 1 kA | ATC ATO Blade | Automotive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.35 | |
Description
General part information
APR-I Series
5 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
