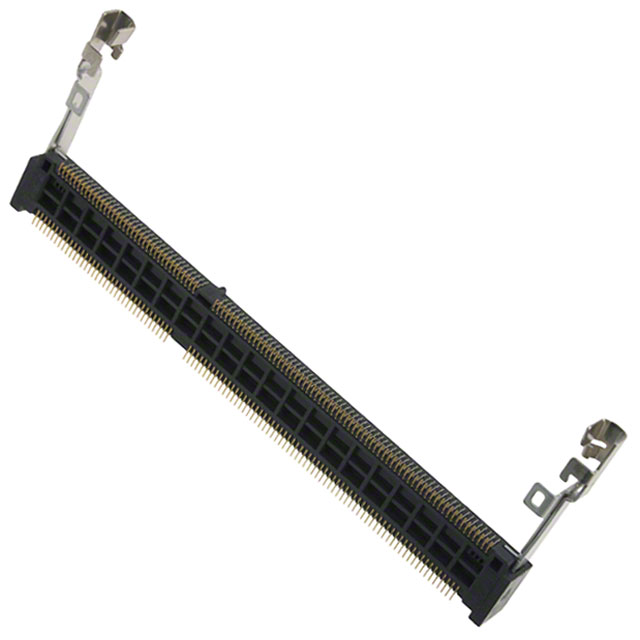

Specification	MM80-204B1-1

Connector Style	SODIMM
Contact Finish	Gold
Contact Finish Thickness	3.94 µin
Features	Latches
Height	0.205 in
Insertion Angle	25 °
Memory Type	DDR3 SDRAM
Mounting Feature	Top, Normal, Standard
Mounting Type	Right Angle, Surface Mount, Screw Mount
Number of Positions	204
Standards	MO-268C

MM80-204 Series

Part	Contact Finish Thickness	Contact Finish	Connector Style	Standards	Height	Number of Positions	Mounting Feature	Memory Type	Insertion Angle	Mounting Type	Features
JAE Electronics MM80-204B1-E1	3.94 µin	Gold	SODIMM	MO-268C	0.362 in	204	Normal Standard Top	DDR3 SDRAM	25 °	Right Angle Screw Mount Surface Mount	Latches
JAE Electronics MM80-204B1-1R	3.94 µin	Gold	SODIMM	MO-268C	0.205 in	204	Reverse	DDR3 SDRAM	25 °	Right Angle Screw Mount Surface Mount	Latches
JAE Electronics MM80-204B1-1	3.94 µin	Gold	SODIMM	MO-268C	0.205 in	204	Normal Standard Top	DDR3 SDRAM	25 °	Right Angle Screw Mount Surface Mount	Latches
