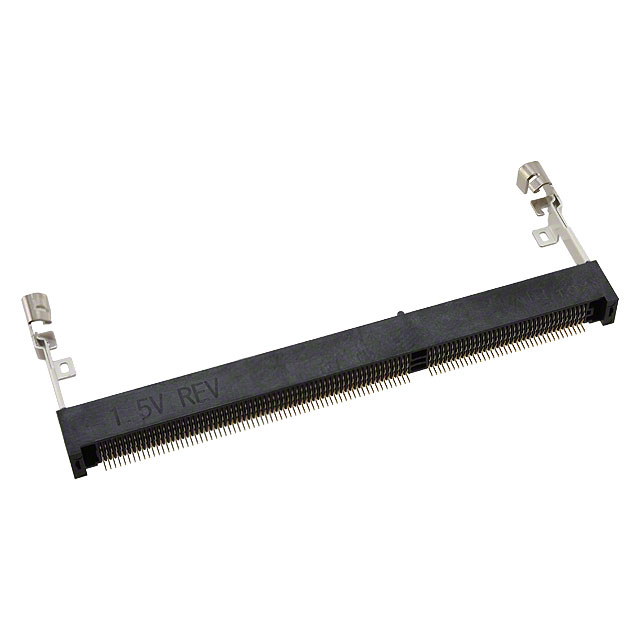

MM80-204B1-1R - MM80-204B1-1R

MM80-204B1-1R

Active
JAE Electronics

CARD EDGE CONNECTOR, 204 CONTACT(S), 2 ROW(S), RIGHT ANGLE, 0.024 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMM80 Series BriefCard Conn, SIM, CF, DIMM, PCIe+1
MM80-204B1-1R - MM80-204B1-1R

MM80-204B1-1R

Active
JAE Electronics

CARD EDGE CONNECTOR, 204 CONTACT(S), 2 ROW(S), RIGHT ANGLE, 0.024 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING

Deep-Dive with AI

DocumentsMM80 Series BriefCard Conn, SIM, CF, DIMM, PCIe+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMM80-204B1-1R
Connector StyleSODIMM
Contact FinishGold
FeaturesLatches
Height [diameter]0.205 in
Height [diameter]5.2 mm
Insertion Angle25 °
Mounting FeatureReverse
Mounting TypeSurface Mount, Screw Mount, Right Angle
Number of Positions204
StandardsMO-268C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 5.50
10$ 4.98
25$ 4.70
40$ 4.59
80$ 4.36
400$ 4.04

Description

General part information

MM80-204 Series

204 Position SODIMM DDR3 SDRAM Socket Surface Mount, Right Angle, Screw Mount
