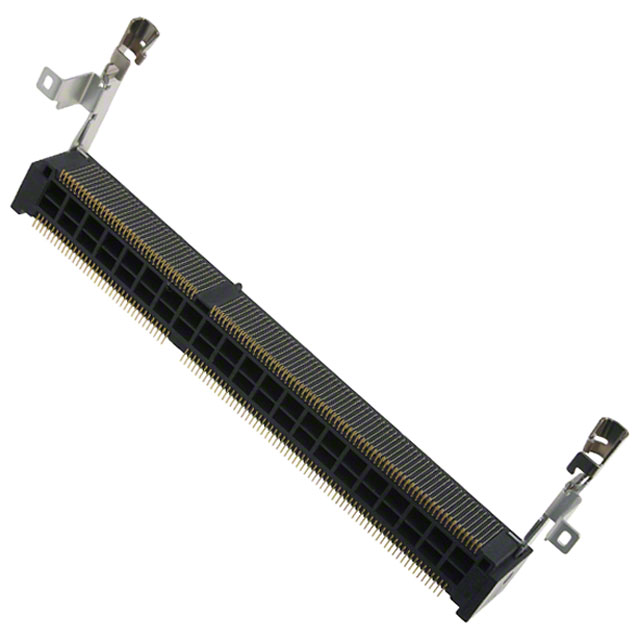

MM80-204B1-E1

Obsolete

JAE Electronics

CONN SKT SODIMM 204POS R/A SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN SKT SODIMM 204POS R/A SMD

Technical Specifications

Parameters and characteristics for this part

Specification	MM80-204B1-E1

Connector Style	SODIMM
Contact Finish	Gold
Features	Latches
Height [z]	0.362 "
Height [z]	9.2 mm
Insertion Angle	25 °
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Screw Mount, Right Angle
Number of Positions	204
Standards	MO-268C

Part	Standards	Insertion Angle	Mounting Type	Height [z]	Height [z]	Features	Mounting Feature	Number of Positions	Connector Style	Contact Finish	Height [diameter]	Height [diameter]
JAE Electronics MM80-204B1-E1	MO-268C	25 °	Right Angle Screw Mount Surface Mount	0.362 "	9.2 mm	Latches	Normal Standard - Top	204	SODIMM	Gold
JAE Electronics MM80-204B1-1R	MO-268C	25 °	Right Angle Screw Mount Surface Mount			Latches	Reverse	204	SODIMM	Gold	0.205 in	5.2 mm
JAE Electronics MM80-204B1-1	MO-268C	25 °	Right Angle Screw Mount Surface Mount			Latches	Normal Standard - Top	204	SODIMM	Gold	0.205 in	5.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

204 Position SODIMM DDR3 SDRAM Socket Surface Mount, Right Angle, Screw Mount
