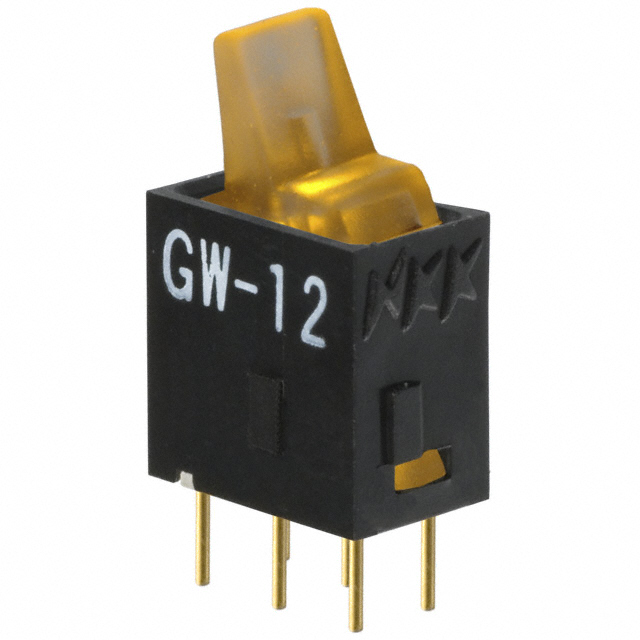

GW12LJPD
ActiveNKK Switches
ULTRA-THIN FULLY ILLUMINATED PADDLE ROCKER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GW12LJPD
ActiveNKK Switches
ULTRA-THIN FULLY ILLUMINATED PADDLE ROCKER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GW12LJPD |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Paddle - Illuminated |
| Approval Agency | CSA, UL |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Sealed - Flux Protection |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 2 VDC |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
GW12LJ Series
| Part | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Mounting Type | Switch Function | Actuator Marking | Color - Actuator/Cap | Voltage Rating - DC | Circuit | Approval Agency | Illumination Type, Color | Voltage Rating - AC | Illumination Voltage (Nominal) | Current Rating (Amps) | Features | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 50000 Cycles | 55 °C | -25 °C | PC Pin | Through Hole | On-On | No Marking | Clear | 28 V | SPDT | CSA UL | Green/Red LED | 28 V | 2 VDC | 0.4 VA | Sealed - Flux Protection | Paddle - Illuminated |
NKK Switches | 50000 Cycles | 55 °C | -25 °C | PC Pin | Through Hole | On-On | No Marking | Clear | 28 V | SPDT | CSA UL | Amber LED | 28 V | 2 VDC | 0.4 VA | Sealed - Flux Protection | Paddle - Illuminated |
NKK Switches | 50000 Cycles | 55 °C | -25 °C | PC Pin | Through Hole Right Angle | On-On | No Marking | Clear | 28 V | SPDT | CSA UL | Green LED | 28 V | 2.1 VDC | 0.4 VA | Sealed - Flux Protection | Paddle - Illuminated |
NKK Switches | 50000 Cycles | 55 °C | -25 °C | PC Pin | Through Hole | On-On | No Marking | Clear | 28 V | SPDT | CSA UL | Green LED | 28 V | 2.1 VDC | 0.4 VA | Sealed - Flux Protection | Paddle - Illuminated |
NKK Switches | 50000 Cycles | 55 °C | -25 °C | PC Pin | Right Angle Through Hole Vertical | On-On | No Marking | Clear | 28 V | SPDT | CSA UL | Green LED | 28 V | 2.1 VDC | 0.4 VA | Sealed - Flux Protection | Paddle - Illuminated |
NKK Switches | 50000 Cycles | 55 °C | -25 °C | PC Pin | Through Hole Right Angle | On-On | No Marking | Clear | 28 V | SPDT | CSA UL | LED Red | 28 V | 2 VDC | 0.4 VA | Sealed - Flux Protection | Paddle - Illuminated |
NKK Switches | 50000 Cycles | 55 °C | -25 °C | PC Pin | Right Angle Through Hole Vertical | On-On | No Marking | Clear | 28 V | SPDT | CSA UL | Green/Red LED | 28 V | 2 VDC | 0.4 VA | Sealed - Flux Protection | Paddle - Illuminated |
NKK Switches | 50000 Cycles | 55 °C | -25 °C | PC Pin | Right Angle Through Hole Vertical | On-On | No Marking | Clear | 28 V | SPDT | CSA UL | LED Red | 28 V | 2 VDC | 0.4 VA | Sealed - Flux Protection | Paddle - Illuminated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
GW12LJ Series
Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole
