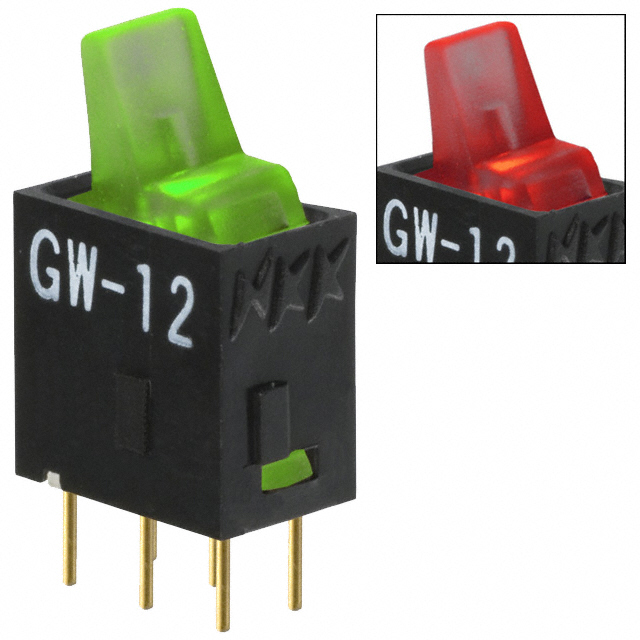

GW12LJPCF

Active

NKK Switches

ROCKER SWITCH, ILLUMINATED, SPDT, ON-NONE-ON, TRANSPARENT, THROUGH HOLE, 100 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN Datasheet

GW12LJPCF

Active

NKK Switches

ROCKER SWITCH, ILLUMINATED, SPDT, ON-NONE-ON, TRANSPARENT, THROUGH HOLE, 100 MA

Deep-Dive with AI

DocumentsProduct Change Notice EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GW12LJPCF

Actuator Marking	No Marking
Actuator Type	Paddle - Illuminated
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC
Mounting Type	Through Hole
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

GW12LJ Series

Part	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Switch Function	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Circuit	Approval Agency	Illumination Type, Color	Voltage Rating - AC	Illumination Voltage (Nominal)	Current Rating (Amps)	Features	Actuator Type
NKK Switches GW12LJPCF	50000 Cycles	55 °C	-25 °C	PC Pin	Through Hole	On-On	No Marking	Clear	28 V	SPDT	CSA UL	Green/Red LED	28 V	2 VDC	0.4 VA	Sealed - Flux Protection	Paddle - Illuminated
NKK Switches GW12LJPD	50000 Cycles	55 °C	-25 °C	PC Pin	Through Hole	On-On	No Marking	Clear	28 V	SPDT	CSA UL	Amber LED	28 V	2 VDC	0.4 VA	Sealed - Flux Protection	Paddle - Illuminated
NKK Switches GW12LJHF	50000 Cycles	55 °C	-25 °C	PC Pin	Through Hole Right Angle	On-On	No Marking	Clear	28 V	SPDT	CSA UL	Green LED	28 V	2.1 VDC	0.4 VA	Sealed - Flux Protection	Paddle - Illuminated
NKK Switches GW12LJPF	50000 Cycles	55 °C	-25 °C	PC Pin	Through Hole	On-On	No Marking	Clear	28 V	SPDT	CSA UL	Green LED	28 V	2.1 VDC	0.4 VA	Sealed - Flux Protection	Paddle - Illuminated
NKK Switches GW12LJVF	50000 Cycles	55 °C	-25 °C	PC Pin	Right Angle Through Hole Vertical	On-On	No Marking	Clear	28 V	SPDT	CSA UL	Green LED	28 V	2.1 VDC	0.4 VA	Sealed - Flux Protection	Paddle - Illuminated
NKK Switches GW12LJHC	50000 Cycles	55 °C	-25 °C	PC Pin	Through Hole Right Angle	On-On	No Marking	Clear	28 V	SPDT	CSA UL	LED Red	28 V	2 VDC	0.4 VA	Sealed - Flux Protection	Paddle - Illuminated
NKK Switches GW12LJVCF	50000 Cycles	55 °C	-25 °C	PC Pin	Right Angle Through Hole Vertical	On-On	No Marking	Clear	28 V	SPDT	CSA UL	Green/Red LED	28 V	2 VDC	0.4 VA	Sealed - Flux Protection	Paddle - Illuminated
NKK Switches GW12LJVC	50000 Cycles	55 °C	-25 °C	PC Pin	Right Angle Through Hole Vertical	On-On	No Marking	Clear	28 V	SPDT	CSA UL	LED Red	28 V	2 VDC	0.4 VA	Sealed - Flux Protection	Paddle - Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.89
		10	$ 7.09
		25	$ 6.76
		40	$ 6.47
		80	$ 6.22
		230	$ 5.89
		440	$ 5.45
		945	$ 5.20
Newark	Each	1	$ 14.42
		5	$ 13.45
		10	$ 12.37
		25	$ 11.29
		50	$ 10.21
		100	$ 9.02
		250	$ 8.10

Description

General part information

GW12LJ Series

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet
