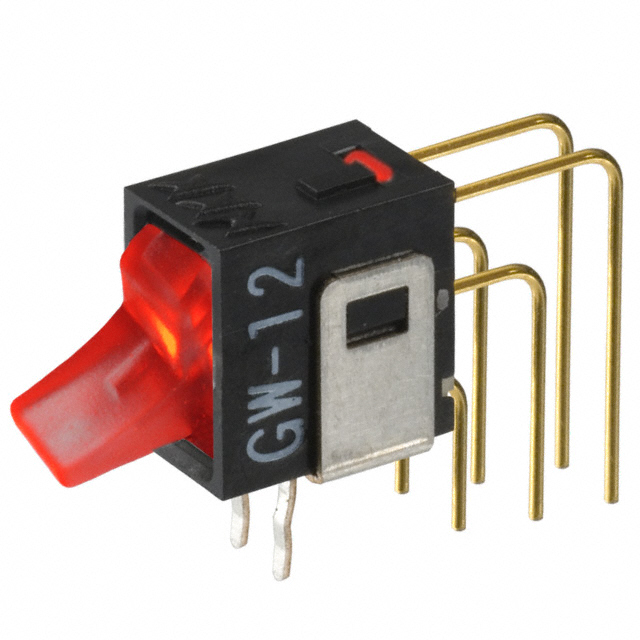

Specification	GW12LJVC

Actuator Marking	No Marking
Actuator Type	Paddle, Illuminated
Approval Agency	UL, CSA
Circuit	SPDT
Color	Red
Color - Actuator/Cap	Clear
Current Rating	0.4 VA
Electrical Life (Cycles)	50000
Features	Sealed, Flux Protection
Illumination Type	LED
Illumination Voltage (Nominal)	2 VDC
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Vertical, Right Angle, Through Hole
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

GW12LJ Series

Part	Color - Actuator/Cap	Termination Style	Circuit	Voltage Rating - DC	Features	Actuator Marking	Color	Illumination Type	Approval Agency	Mounting Type	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Switch Function	Illumination Voltage (Nominal)	Voltage Rating - AC	Actuator Type	Mechanical Life (Cycles)	Electrical Life (Cycles)
NKK Switches GW12LJPCF	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Green Red	LED	CSA UL	Through Hole	0.4 VA	-25 °C	55 °C	On-On	2 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJHCF	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Green Red	LED	CSA UL	Right Angle Through Hole	0.4 VA	-25 °C	55 °C	On-On	2 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJPD	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Amber	LED	CSA UL	Through Hole	0.4 VA	-25 °C	55 °C	On-On	2 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJVD	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Amber	LED	CSA UL	Right Angle Through Hole Vertical	0.4 VA	-25 °C	55 °C	On-On	2 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJHF	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Green	LED	CSA UL	Right Angle Through Hole	0.4 VA	-25 °C	55 °C	On-On	2.1 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJPF	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Green	LED	CSA UL	Through Hole	0.4 VA	-25 °C	55 °C	On-On	2.1 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJVF	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Green	LED	CSA UL	Right Angle Through Hole Vertical	0.4 VA	-25 °C	55 °C	On-On	2.1 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJHC	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Red	LED	CSA UL	Right Angle Through Hole	0.4 VA	-25 °C	55 °C	On-On	2 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJVCF	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Green Red	LED	CSA UL	Right Angle Through Hole Vertical	0.4 VA	-25 °C	55 °C	On-On	2 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
NKK Switches GW12LJVC	Clear	PC Pin	SPDT	28 V	Flux Protection Sealed	No Marking	Red	LED	CSA UL	Right Angle Through Hole Vertical	0.4 VA	-25 °C	55 °C	On-On	2 VDC	28 V	Illuminated Paddle	50000 Cycles	50000
