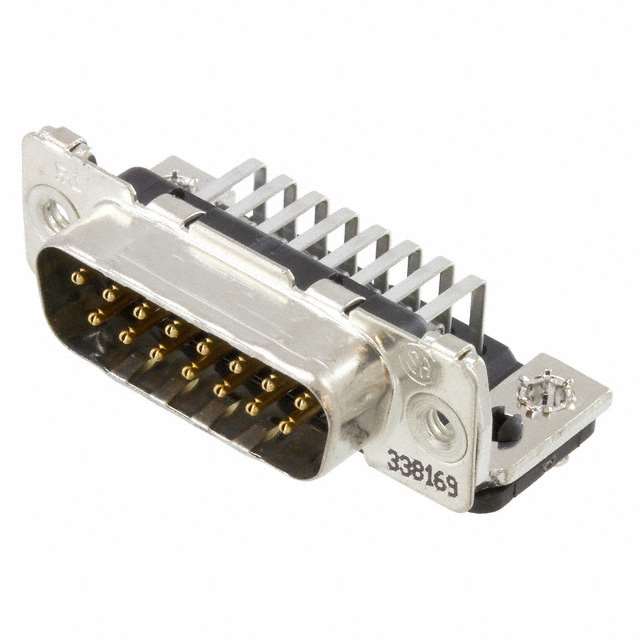

1-338169-2
ActiveTE Connectivity Raychem Cable Protection
15P HDP20 PLUG ASSY
Deep-Dive with AI
Search across all available documentation for this part.
1-338169-2
ActiveTE Connectivity Raychem Cable Protection
15P HDP20 PLUG ASSY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-338169-2 |
|---|---|
| Backset Spacing | 0.406 in |
| Backset Spacing | 10.3 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 6 A |
| Dielectric Material | Polyester, Glass Filled |
| Features | Grounding Indents, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
AMPLIMITE HDP Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Current Rating (Amps) | Backset Spacing | Backset Spacing | Dielectric Material | Features | Number of Positions | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Voltage Rating | Contact Material | Connector Type | Mounting Type | Connector Style | Number of Rows | Contact Finish | Flange Feature | Color | Contact Type | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Type | Pin or Socket | Contact Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Solder | 6 A | 0.406 in | 10.3 mm | Polyester Glass Filled | Grounding Indents | 9 | UL94 V-0 | DE E | 1 | 125 VDC | Phosphor Bronze | Male Pins Plug | Through Hole Right Angle | D-Sub | 2 | Gold | Female Screwlock (4-40) Mating Side | Black | Signal | ||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Solder | 6 A | 0.545 in | 13.84 mm | Glass Filled Nylon Polyamide (PA) | Mounting Brackets | 50 | UL94 V-0 | 125 VDC | Phosphor Bronze | Receptacle Female Sockets | Through Hole Right Angle | D-Sub | 3 | Gold | Female Screwlock (4-40) Mating Side | Black | Signal | 5 | |||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Solder | 6 A | 0.406 in | 10.3 mm | Polyester Glass Filled | 9 | UL94 V-0 | DE E | 1 | 125 VDC | Phosphor Bronze | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | D-Sub | 2 | Gold | Housing/Shell (4-40) | Black | Signal | 0.76 Ám | 30 Áin | |||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Solder | 6 A | 0.406 in | 10.3 mm | Polyester Glass Filled | Board Lock Grounding Indents | 15 | UL94 V-0 | 125 VDC | Phosphor Bronze | Male Pins Plug | Through Hole Right Angle | D-Sub | 2 | Gold | Housing/Shell (4-40) | Black | Signal | 2 | |||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Solder | 6 A | 0.454 in | 11.53 mm | Glass Filled Nylon Polyamide (PA) | Mounting Brackets | 9 | UL94 V-0 | DE E | 1 | 125 VDC | Phosphor Bronze | Receptacle Female Sockets | Through Hole Right Angle | D-Sub | 2 | Gold | Mating Side Standard Screws (4-40) | Black | Signal | ||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Solder | 6 A | 0.545 in | 13.84 mm | Glass Filled Nylon Polyamide (PA) | Mounting Brackets | 37 | UL94 V-0 | 125 VDC | Phosphor Bronze | Receptacle Female Sockets | Through Hole Right Angle | D-Sub | 2 | Gold | Mating Side Standard Screws (4-40) | Black | Signal | 4 (DC C) | |||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Solder | 6 A | 0.406 in | 10.3 mm | Polyester Glass Filled | UL94 V-0 | B DB | 3 | 125 VDC | Phosphor Bronze | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | D-Sub | 2 | Gold | Female Screwlock (4-40) Mating Side | Black | Signal | 0.76 Ám | 30 Áin | ||||||||
TE Connectivity Raychem Cable Protection | Phosphor Bronze | Stamped | Socket | Solder Cup | ||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | Solder | 6 A | 0.545 in | 13.84 mm | Glass Filled Nylon Polyamide (PA) | Mounting Brackets | 50 | UL94 V-0 | 125 VDC | Phosphor Bronze | Receptacle Female Sockets | Through Hole Right Angle | D-Sub | 3 | Gold | Mating Side Standard Screws (4-40) | Black | Signal | 5 | |||||||||
TE Connectivity Raychem Cable Protection | Phosphor Bronze | Gold | Stamped | Socket | Solder | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.79 | |
| 10 | $ 4.18 | |||
| 25 | $ 4.07 | |||
| 90 | $ 3.96 | |||
| 270 | $ 3.87 | |||
Description
General part information
AMPLIMITE HDP Series
15 Position D-Shaped Connector, Plug, Cable-to-Board, Board Mount, 2 Shell Size, 2.74 mm [.108 in] Centerline, Printed Circuit Board, AMPLIMITE HDP
