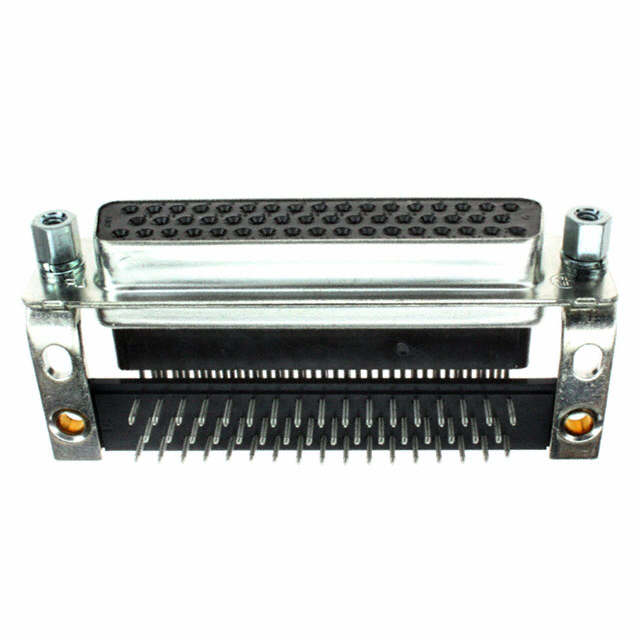

5747193-2
ActiveTE Connectivity Raychem Cable Protection
D-SUB HIGH DENSITY CONNECTORS DSUB D50S RA545
Deep-Dive with AI
Search across all available documentation for this part.
5747193-2
ActiveTE Connectivity Raychem Cable Protection
D-SUB HIGH DENSITY CONNECTORS DSUB D50S RA545
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5747193-2 |
|---|---|
| Backset Spacing | 13.84 mm |
| Backset Spacing | 0.545 in |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 6 A |
| Dielectric Material | Glass Filled, Polyamide (PA), Nylon |
| Features | Mounting Brackets |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 5 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AMPLIMITE HDP Series
50 Position D-Shaped Connector, Receptacle, Board-to-Board, Board Mount, 5 Shell Size, 2.77 mm [.109 in] Centerline, AMPLIMITE HDP
