6-106505-2

Active

TE Connectivity Raychem Cable Protection

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6-106505-2

Active

TE Connectivity Raychem Cable Protection

CONN D-SUB RCPT 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6-106505-2

Backset Spacing	0.406 in
Backset Spacing	10.3 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	6 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	125 VDC

AMPLIMITE HDP Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Backset Spacing	Backset Spacing	Dielectric Material	Features	Number of Positions	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Contact Material	Connector Type	Mounting Type	Connector Style	Number of Rows	Contact Finish	Flange Feature	Color	Contact Type	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Type	Pin or Socket	Contact Termination	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 8-338168-2	105 ░C	-55 °C	Solder	6 A	0.406 in	10.3 mm	Polyester Glass Filled	Grounding Indents	9	UL94 V-0	DE E	1	125 VDC	Phosphor Bronze	Male Pins Plug	Through Hole Right Angle	D-Sub	2	Gold	Female Screwlock (4-40) Mating Side	Black	Signal
TE Connectivity Raychem Cable Protection 5747193-2	105 ░C	-55 °C	Solder	6 A	0.545 in	13.84 mm	Glass Filled Nylon Polyamide (PA)	Mounting Brackets	50	UL94 V-0			125 VDC	Phosphor Bronze	Receptacle Female Sockets	Through Hole Right Angle	D-Sub	3	Gold	Female Screwlock (4-40) Mating Side	Black	Signal	5
TE Connectivity Raychem Cable Protection 6-106505-2	105 ░C	-55 °C	Solder	6 A	0.406 in	10.3 mm	Polyester Glass Filled		9	UL94 V-0	DE E	1	125 VDC	Phosphor Bronze	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	D-Sub	2	Gold	Housing/Shell (4-40)	Black	Signal		0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 1-338169-2	105 ░C	-55 °C	Solder	6 A	0.406 in	10.3 mm	Polyester Glass Filled	Board Lock Grounding Indents	15	UL94 V-0			125 VDC	Phosphor Bronze	Male Pins Plug	Through Hole Right Angle	D-Sub	2	Gold	Housing/Shell (4-40)	Black	Signal	2
TE Connectivity Raychem Cable Protection 5745438-4	105 ░C	-55 °C	Solder	6 A	0.454 in	11.53 mm	Glass Filled Nylon Polyamide (PA)	Mounting Brackets	9	UL94 V-0	DE E	1	125 VDC	Phosphor Bronze	Receptacle Female Sockets	Through Hole Right Angle	D-Sub	2	Gold	Mating Side Standard Screws (4-40)	Black	Signal
TE Connectivity Raychem Cable Protection 5745115-2	105 ░C	-55 °C	Solder	6 A	0.545 in	13.84 mm	Glass Filled Nylon Polyamide (PA)	Mounting Brackets	37	UL94 V-0			125 VDC	Phosphor Bronze	Receptacle Female Sockets	Through Hole Right Angle	D-Sub	2	Gold	Mating Side Standard Screws (4-40)	Black	Signal				4 (DC C)
TE Connectivity Raychem Cable Protection 3-106507-2	105 ░C	-55 °C	Solder	6 A	0.406 in	10.3 mm	Polyester Glass Filled			UL94 V-0	B DB	3	125 VDC	Phosphor Bronze	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	D-Sub	2	Gold	Female Screwlock (4-40) Mating Side	Black	Signal		0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 6-745288-2														Phosphor Bronze													Stamped	Socket	Solder Cup
TE Connectivity Raychem Cable Protection 5745116-2	105 ░C	-55 °C	Solder	6 A	0.545 in	13.84 mm	Glass Filled Nylon Polyamide (PA)	Mounting Brackets	50	UL94 V-0			125 VDC	Phosphor Bronze	Receptacle Female Sockets	Through Hole Right Angle	D-Sub	3	Gold	Mating Side Standard Screws (4-40)	Black	Signal	5
TE Connectivity Raychem Cable Protection 7-745288-2														Phosphor Bronze					Gold								Stamped	Socket	Solder	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	880	$ 6.96

Description

General part information

AMPLIMITE HDP Series

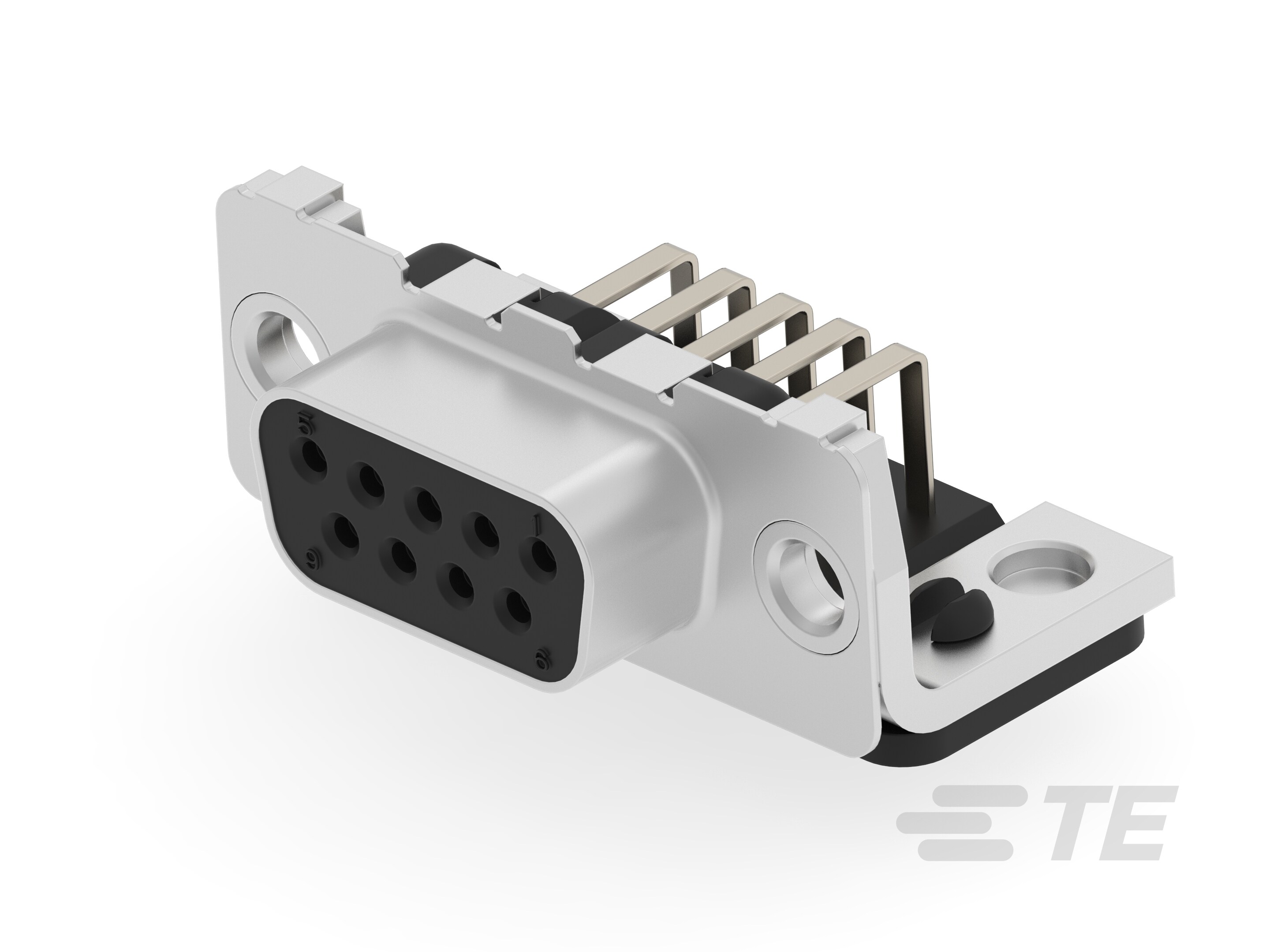

9 Position D-Sub Receptacle, Female Sockets Connector
