2834006-1
ActiveTE Connectivity Raychem Cable Protection

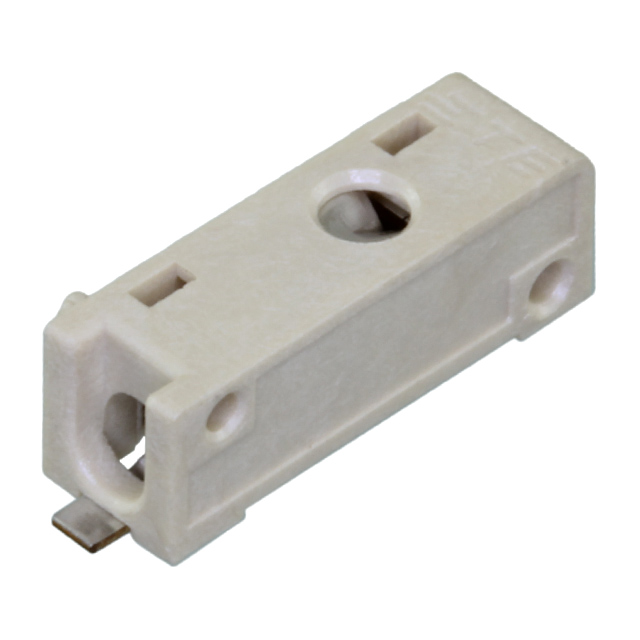

RELEASE POKE-IN CONNECTOR 1 POLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2834006-1
ActiveTE Connectivity Raychem Cable Protection
RELEASE POKE-IN CONNECTOR 1 POLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834006-1 |
|---|---|
| Connector Type | Poke-In Wire, Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 6 A |
| Housing Color | Natural |
| Housing Material | Resin |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 400 V |
| Wire Gauge | 20 AWG, 18 AWG, 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.32 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.19 | |||
| Tape & Reel (TR) | 1000 | $ 0.19 | ||
| 3000 | $ 0.18 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.15 | |||
| 25000 | $ 0.15 | |||
Description
General part information
BUCHANAN WireMate Poke-In Series
SSL Connector 1 Position Receptacle, Poke-In Wire Board to Cable/Wire Solder
