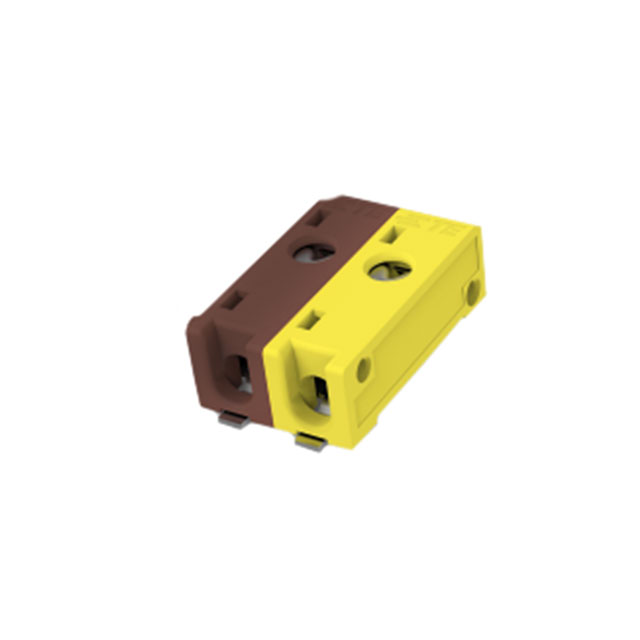

2-2834006-0
ActiveTE Connectivity Raychem Cable Protection
CONN POKE-IN WIRE RCP 2 POS 4MM SOLDER RA SIDE ENTRY SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
2-2834006-0
ActiveTE Connectivity Raychem Cable Protection
CONN POKE-IN WIRE RCP 2 POS 4MM SOLDER RA SIDE ENTRY SMD T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2834006-0 |
|---|---|
| Connector Type | Poke-In Wire, Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 6 A |
| Housing Color | Yellow, Brown |
| Housing Material | Resin |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 4 mm |
| Pitch [x] | 0.157 in |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 400 V |
| Wire Gauge | 20 AWG, 18 AWG, 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.18 | |||
| Tape & Reel (TR) | 800 | $ 0.45 | ||
Description
General part information
BUCHANAN WireMate Poke-In Series
Wire-to-Board, 2 Position, 4 mm Centerline, Printed Circuit Board, 4.48 mm [.176 in] Height, BUCHANAN WireMate Poke-In, Poke-In Connectors
