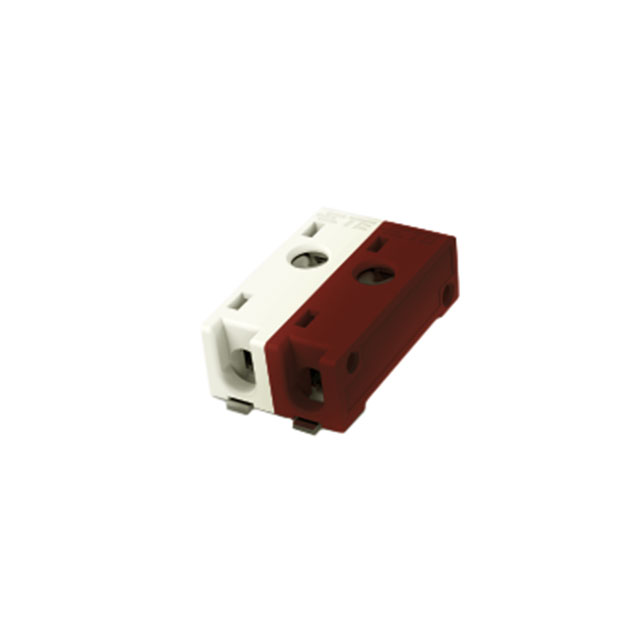

5-2834006-2
ActiveTE Connectivity Raychem Cable Protection
2P MRPK _WE/RD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-2834006-2 |
|---|---|
| Connector Type | Poke-In Wire, Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A, 6 A |
| Housing Color [custom] | Red, Natural |
| Housing Material | Resin |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 4 mm |
| Pitch [x] | 0.157 in |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 400 V |
| Wire Gauge | 20 AWG, 18 AWG, 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.28 | |||
| Tape & Reel (TR) | 800 | $ 0.75 | ||
Description
General part information
BUCHANAN WireMate Poke-In Series
Wire-to-Board, 2 Position, 4 mm Centerline, Printed Circuit Board, 4.48 mm [.176 in] Height, BUCHANAN WireMate Poke-In, Poke-In Connectors
