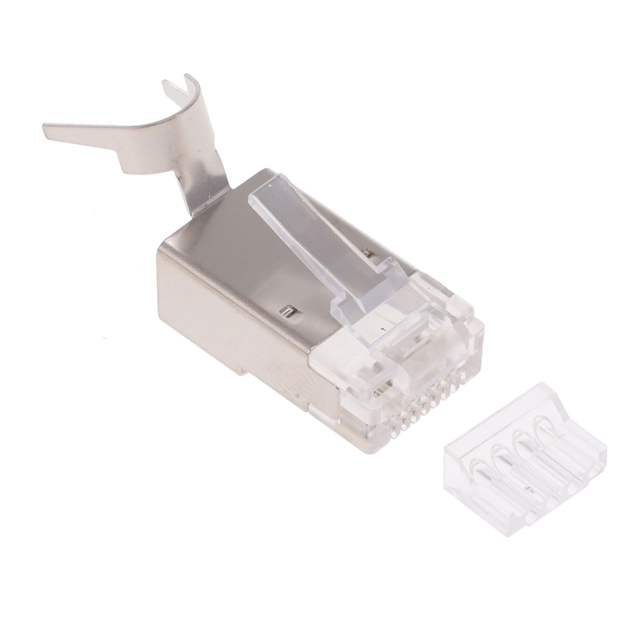

Specification	MTP-88-X-S-C8-A

Cable Type	Solid Wires, Flat Oval Cable
Color	Clear
Connector Type	Ethernet, RJ45, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Current Rating	1.5 A
Housing Material	PC, Polycarbonate
Length	0.882 in
Number of Contacts	8
Number of Positions	8
Ratings	Cat8
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VDC
Wire Gauge (AWG) (Max)	23 AWG
Wire Gauge (AWG) (Min)	21 AWG

MTP-88 Series

Part	Current Rating	Voltage Rating	Contact Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish Thickness	Contact Finish	Housing Material	Length	Termination	Shielding	Number of Positions	Connector Type	Number of Contacts	Color	Cable Type	Accessory Type	For Use With/Related Products	Ratings	Contact Finish Thickness (string set options)	Contact Finish Thickness
Adam Tech MTP-88-G	1.5 A	150 VDC	Phosphor Bronze	26 AWG	24 AWG	50 µin	Gold	PC Polycarbonate	0.883 in	IDC	Unshielded	8	Ethernet Plug RJ45	8	Clear	Flat Oval Cable Stranded Wires
Adam Tech MTP-88-C8-SR-A3															Blue		Strain Relief	Cat8 Modular RJ45 Plugs
Adam Tech MTP-88-W-S-C6A1	1.5 A	150 VDC	Copper Alloy	24 AWG	23 AWG	30 µin	Gold	PC Polycarbonate	0.882 in	IDC	Unshielded	8	Ethernet Plug RJ45	8	Clear	Flat Oval Cable Solid Wires			Cat6
Adam Tech MTP-88-C6-SR-A1															Clear		Strain Relief	Cat6 Modular RJ45 Plugs
Adam Tech MTP-88-W-S-C6-A	1.5 A	150 VDC	Copper Alloy	23 AWG	21 AWG	30 µin	Gold	PC Polycarbonate	0.863 in	IDC	Unshielded	8	Ethernet Plug RJ45	8	Clear	Flat Oval Cable Solid Wires			Cat6
Adam Tech MTP-88-X-S-C6-A	1.5 A	150 VDC	Copper Alloy	23 AWG	21 AWG	0	Gold	PC Polycarbonate	0.863 in	IDC	Unshielded	8	Ethernet Plug RJ45	8	Clear	Flat Oval Cable Solid Wires			Cat6	Flash	Flash
Adam Tech MTP-88-W-S-C8-A	1.5 A	150 VDC	Copper Alloy	23 AWG	21 AWG	30 µin	Gold	PC Polycarbonate	0.882 in	IDC	Unshielded	8	Ethernet Plug RJ45	8	Clear	Flat Oval Cable Solid Wires			Cat8
Adam Tech MTP-88-X-S-C8-A	1.5 A	150 VDC	Copper Alloy	23 AWG	21 AWG	0	Gold	PC Polycarbonate	0.882 in	IDC	Unshielded	8	Ethernet Plug RJ45	8	Clear	Flat Oval Cable Solid Wires			Cat8	Flash	Flash
Adam Tech MTP-88-HD-A															Black		Hood	RJ45 Plugs
Adam Tech MTP-88-X-EMI-SP1	1.5 A	150 VDC	Copper Alloy	26 AWG	24 AWG	0	Gold	PC Polycarbonate	1.189 in	IDC	Unshielded	8	Ethernet Plug RJ45	8	Clear	Flat Oval Cable Not Specified				Flash	Flash
