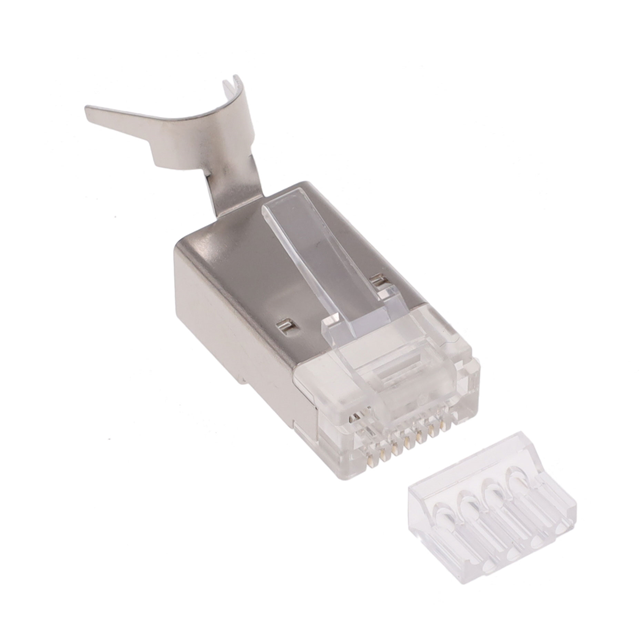

MTP-88-W-S-C8-A
ActiveAdam Tech
CAT8 PLUG, 8P8C, 30U PLATING, SO
Deep-Dive with AI
Search across all available documentation for this part.
MTP-88-W-S-C8-A
ActiveAdam Tech
CAT8 PLUG, 8P8C, 30U PLATING, SO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MTP-88-W-S-C8-A |
|---|---|
| Cable Type | Flat Oval Cable, Solid Wires |
| Color | Clear |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Housing Material | Polycarbonate (PC) |
| Length | 0.882 in |
| Length | 22.4 mm |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat8 |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 150 VAC |
| Wire Gauge [Max] | 23 AWG |
| Wire Gauge [Min] | 21 AWG |
MTP-88 Series
| Part | Voltage Rating | Termination | Length | Length | Contact Finish | Contact Material | Shielding | Current Rating (Amps) | Housing Material | Connector Type | Color | Number of Positions/Contacts | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Cable Type | Accessory Type | For Use With/Related Products | Ratings | Contact Finish Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 150 VDC | IDC | 0.883 " | 22.43 mm | Gold | Phosphor Bronze | Unshielded | 1.5 A | Polycarbonate (PC) | Plug | Clear | 8p8c (RJ45 Ethernet) | 50 µin | 1.27 µm | 24 AWG | 26 AWG | Flat Oval Cable Stranded Wires | ||||||
Adam Tech | Blue | Strain Relief | Cat8 Modular RJ45 Plugs | ||||||||||||||||||||
Adam Tech | Clear | Strain Relief | Cat6 Modular RJ45 Plugs | ||||||||||||||||||||
Adam Tech | 150 VAC | IDC | 0.863 in | 21.92 mm | Gold | Copper Alloy | Unshielded | 1.5 A | Polycarbonate (PC) | Plug | Clear | 8p8c (RJ45 Ethernet) | 30 Áin | 0.76 Ám | 21 AWG | 23 AWG | Flat Oval Cable Solid Wires | Cat6 | |||||
Adam Tech | 150 VAC | IDC | 0.863 in | 21.92 mm | Gold | Copper Alloy | Unshielded | 1.5 A | Polycarbonate (PC) | Plug | Clear | 8p8c (RJ45 Ethernet) | 21 AWG | 23 AWG | Flat Oval Cable Solid Wires | Cat6 | Flash | ||||||
Adam Tech | 150 VAC | IDC | 0.882 in | 22.4 mm | Gold | Copper Alloy | Unshielded | 1.5 A | Polycarbonate (PC) | Plug | Clear | 8p8c (RJ45 Ethernet) | 30 Áin | 0.76 Ám | 21 AWG | 23 AWG | Flat Oval Cable Solid Wires | Cat8 | |||||
Adam Tech | 150 VAC | IDC | 0.882 in | 22.4 mm | Gold | Copper Alloy | Unshielded | 1.5 A | Polycarbonate (PC) | Plug | Clear | 8p8c (RJ45 Ethernet) | 21 AWG | 23 AWG | Flat Oval Cable Solid Wires | Cat8 | Flash | ||||||
Adam Tech | Black | Hood | RJ45 Plugs | ||||||||||||||||||||
Adam Tech | 150 VAC | IDC | Gold | Copper Alloy | Unshielded | 1.5 A | Polycarbonate (PC) | Plug | Clear | 8p8c (RJ45 Ethernet) | 24 AWG | 26 AWG | Flat Oval Cable Not Specified | Flash | 30.2 mm | 1.189 " | |||||||
Adam Tech | 150 VAC | IDC | 0.882 in | 22.4 mm | Gold | Copper Alloy | Unshielded | 1.5 A | Polycarbonate (PC) | Plug | Clear | 8p8c (RJ45 Ethernet) | 30 Áin | 0.76 Ám | 23 AWG | 24 AWG | Flat Oval Cable Solid Wires | Cat6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.33 | |
| 10 | $ 1.01 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.61 | |||
| 2500 | $ 0.55 | |||
Description
General part information
MTP-88 Series
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat8 IDC
