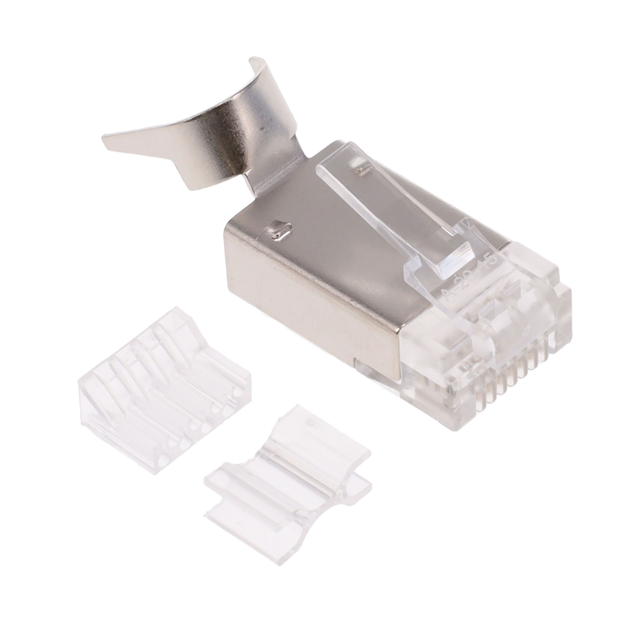

MTP-88-W-S-C6-A

MTP-88-W-S-C6-A

Active
Adam Tech

CAT6 PLUG, 8P8C, 30U PLATING, SO

Find alt
MTP-88-W-S-C6-A

MTP-88-W-S-C6-A

Active
Adam Tech

CAT6 PLUG, 8P8C, 30U PLATING, SO

Find alt

Description

General part information

MTP-88 Series

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat6 IDC

Technical Specifications

Parameters and characteristics for this part

SpecificationMTP-88-W-S-C6-A
Cable TypeSolid Wires, Flat Oval Cable
ColorClear
Connector TypePlug, Ethernet, RJ45
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialCopper Alloy
Current Rating1.5 A
Housing MaterialPC, Polycarbonate
Length0.863 in
Number of Contacts8
Number of Positions8
RatingsCat6
ShieldingUnshielded
TerminationIDC
Voltage Rating150 VDC
Wire Gauge (AWG) (Max)23 AWG
Wire Gauge (AWG) (Min)21 AWG
