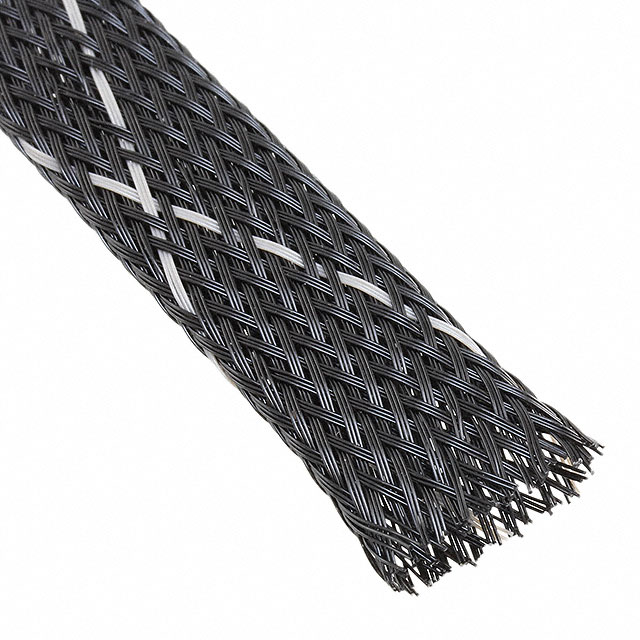

VERSAFLEX-FR-3/4-09-SP
UnknownTE Connectivity Raychem Cable Protection
SLEEVING, BRAIDED FLAME RETARDANT, EXPANDABLE, PE (POLYESTER), BLACK / WHITE, 19.05 MM, 75 M
Deep-Dive with AI
Search across all available documentation for this part.
VERSAFLEX-FR-3/4-09-SP
UnknownTE Connectivity Raychem Cable Protection
SLEEVING, BRAIDED FLAME RETARDANT, EXPANDABLE, PE (POLYESTER), BLACK / WHITE, 19.05 MM, 75 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VERSAFLEX-FR-3/4-09-SP |
|---|---|
| Abrasion Protection | Abrasion and Cut Resistant |
| Color | White, Black |
| Diameter - Inside, Expanded [diameter] | 1.26 in |
| Diameter - Inside, Expanded [diameter] | 32 mm |
| Diameter - Inside, Non-Expanded [diameter] | 19 mm |
| Diameter - Inside, Non-Expanded [diameter] | 0.748 in |
| Features | Self Extinguishing, Chemical Resistant, Fungus Resistant, Solvent Resistant |
| Heat Protection | Flame Retardant |
| Length | 16.41 ', 32.81 ft |
| Length | 5 m, 10 m |
| Length | Enter Number of Meters in Order Quantity |
| Length [x] | 1 m, 25 m |
| Length [x] | 3.28 ft, 82.02 ft |
| Material | Polyester (PES) |
| Material Flammability Rating | UL VW-1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Spool Size | 75 m |
| Spool Size | 246 ' |
| Type | Sleeve |
| Type Attributes | Expandable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.09 | |
| 1 | $ 37.14 | |||
| 1 | $ 20.62 | |||
| 5 | $ 4.88 | |||
| 5 | $ 18.66 | |||
| 5 | $ 31.28 | |||
| 10 | $ 14.73 | |||
| 10 | $ 3.77 | |||
| 10 | $ 28.34 | |||
| 25 | $ 26.39 | |||
| 25 | $ 3.46 | |||
| 25 | $ 13.75 | |||
| 50 | $ 25.41 | |||
| 50 | $ 3.26 | |||
| 50 | $ 13.06 | |||
| 100 | $ 3.05 | |||
| 100 | $ 24.82 | |||
| 100 | $ 12.76 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 6.22 | ||
| 5 | $ 5.97 | |||
| 10 | $ 4.60 | |||
| 25 | $ 4.23 | |||
| 50 | $ 3.98 | |||
| 100 | $ 3.73 | |||
| Newark | 1 Meter | 1 | $ 4.10 | |
Description
General part information
RAYCHEM VERSAFLEX Series
Sleeve X 32.81' (10.00m) Black, White
