VERSAFLEX-2-0-SP

Unknown

TE Connectivity Raychem Cable Protection

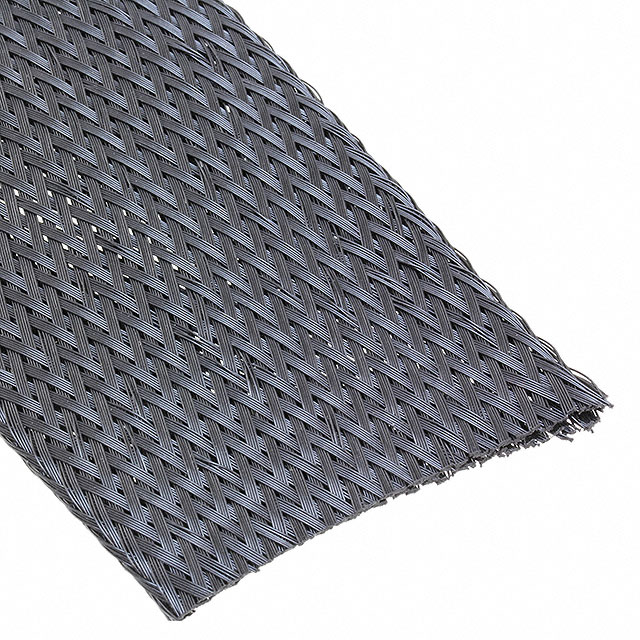

EXPAND SLEEVE 2.008"X3.28' BLK

Deep-Dive with AI

Search across all available documentation for this part.

VERSAFLEX-2-0-SP

Unknown

TE Connectivity Raychem Cable Protection

EXPAND SLEEVE 2.008"X3.28' BLK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VERSAFLEX-2-0-SP

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	76 mm
Diameter - Inside, Expanded [diameter]	2.992 in
Diameter - Inside, Non-Expanded [diameter]	2.008 in
Diameter - Inside, Non-Expanded [diameter]	51 mm
Features	Solvent Resistant, Chemical Resistant, Fungus Resistant
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyester (PES)
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Type	Sleeve
Type Attributes	Expandable

RAYCHEM VERSAFLEX Series

Part	Length [x]	Length [x]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Material	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Features	Diameter - Inside, Non-Expanded	Diameter - Inside, Non-Expanded	Length	Length	Length	Spool Size	Spool Size	Heat Protection	Material Flammability Rating
TE Connectivity Raychem Cable Protection VERSAFLEX-30-8-SP	1 m	3.28 ft	Gray	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	1.575 in	40 mm	1.181 in	30 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant
TE Connectivity Raychem Cable Protection VERSAFLEX-20-0-SP	300 m	984 ft	Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	1.024 in	26 mm			Expandable	Chemical Resistant Fungus Resistant Solvent Resistant	0.787 in	20 mm
TE Connectivity Raychem Cable Protection VERSAFLEX-2-0-SP	1 m	3.28 ft	Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	2.992 in	76 mm	2.008 in	51 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant
TE Connectivity Raychem Cable Protection VERSAFLEX-3/8-0-SP	1 m 25 m 50 m	3.28 ft 82.02 ft 164 ft	Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant			0.394 in	10 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant			16.41 ' 492 '	5 m 150 m	Enter Number of Meters in Order Quantity	150 m	492 ft
TE Connectivity Raychem Cable Protection VERSAFLEX-20-8-SP	1 m	3.28 ft	Gray	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	1.024 in	26 mm			Expandable	Chemical Resistant Fungus Resistant Solvent Resistant	0.787 in	20 mm
TE Connectivity Raychem Cable Protection VERSAFLEX-FR-3/4-09-SP	1 m 25 m	3.28 ft 82.02 ft	Black White	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	1.26 in	32 mm	0.748 in	19 mm	Expandable	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant			16.41 ' 32.81 ft	5 m 10 m	Enter Number of Meters in Order Quantity	75 m	246 '	Flame Retardant	UL VW-1
TE Connectivity Raychem Cable Protection VERSAFLEX-FR-3/8-09-SP	1 m	3.28 ft	Black White	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant			0.394 in	10 mm	Expandable	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant			492 '	150 m				Flame Retardant	UL VW-1
TE Connectivity Raychem Cable Protection VERSAFLEX-50-0-SP	1 m	3.28 ft	Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	2.362 "	60 mm	1.969 in	50 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant			492 '	150 m
TE Connectivity Raychem Cable Protection VERSAFLEX-15-8-SP	1 m	3.28 ft	Gray	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	0.787 in	20 mm	0.591 in	15 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant
TE Connectivity Raychem Cable Protection VERSAFLEX-1/2-0-SP			Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	0.748 "	19 mm	0.512 "	13 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant					Enter Number of Meters in Order Quantity	900 m	2953 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RAYCHEM VERSAFLEX Series

Sleeve X 3.28' (1.00m) Black

Documents

Technical documentation and resources

No documents available
