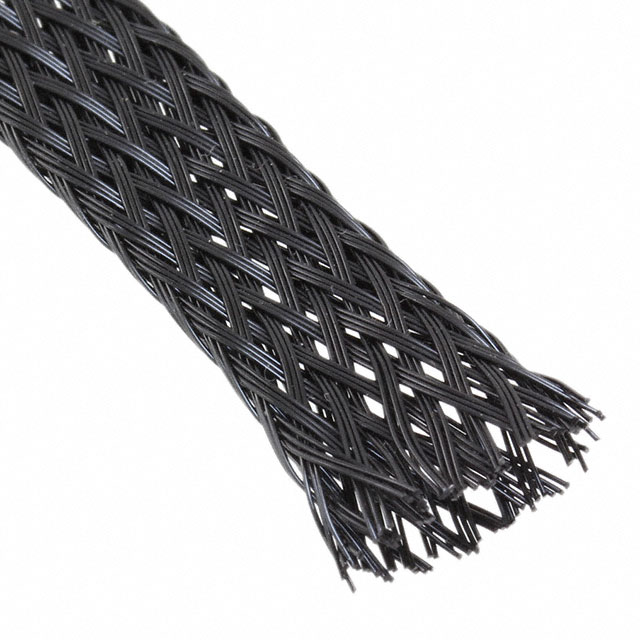

VERSAFLEX-3/8-0-SP

Active

TE Connectivity Raychem Cable Protection

EXPAND SLVE 0.394" BLACK METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Versaflex Sleeving

VERSAFLEX-3/8-0-SP

Active

TE Connectivity Raychem Cable Protection

EXPAND SLVE 0.394" BLACK METER

Deep-Dive with AI

DocumentsDatasheet Versaflex Sleeving

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VERSAFLEX-3/8-0-SP

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	10 mm
Diameter - Inside, Non-Expanded [diameter]	0.394 in
Features	Solvent Resistant, Chemical Resistant, Fungus Resistant
Length	492 ', 16.41 '
Length	150 m, 5 m
Length	Enter Number of Meters in Order Quantity
Length [x]	50 m, 1 m, 25 m
Length [x]	164 ft, 3.28 ft, 82.02 ft
Material	Polyester (PES)
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Spool Size	150 m
Spool Size	492 ft
Type	Sleeve
Type Attributes	Expandable

RAYCHEM VERSAFLEX Series

Part	Length [x]	Length [x]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Material	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Features	Diameter - Inside, Non-Expanded	Diameter - Inside, Non-Expanded	Length	Length	Length	Spool Size	Spool Size	Heat Protection	Material Flammability Rating
TE Connectivity Raychem Cable Protection VERSAFLEX-30-8-SP	1 m	3.28 ft	Gray	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	1.575 in	40 mm	1.181 in	30 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant
TE Connectivity Raychem Cable Protection VERSAFLEX-20-0-SP	300 m	984 ft	Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	1.024 in	26 mm			Expandable	Chemical Resistant Fungus Resistant Solvent Resistant	0.787 in	20 mm
TE Connectivity Raychem Cable Protection VERSAFLEX-2-0-SP	1 m	3.28 ft	Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	2.992 in	76 mm	2.008 in	51 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant
TE Connectivity Raychem Cable Protection VERSAFLEX-3/8-0-SP	1 m 25 m 50 m	3.28 ft 82.02 ft 164 ft	Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant			0.394 in	10 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant			16.41 ' 492 '	5 m 150 m	Enter Number of Meters in Order Quantity	150 m	492 ft
TE Connectivity Raychem Cable Protection VERSAFLEX-20-8-SP	1 m	3.28 ft	Gray	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	1.024 in	26 mm			Expandable	Chemical Resistant Fungus Resistant Solvent Resistant	0.787 in	20 mm
TE Connectivity Raychem Cable Protection VERSAFLEX-FR-3/4-09-SP	1 m 25 m	3.28 ft 82.02 ft	Black White	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	1.26 in	32 mm	0.748 in	19 mm	Expandable	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant			16.41 ' 32.81 ft	5 m 10 m	Enter Number of Meters in Order Quantity	75 m	246 '	Flame Retardant	UL VW-1
TE Connectivity Raychem Cable Protection VERSAFLEX-FR-3/8-09-SP	1 m	3.28 ft	Black White	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant			0.394 in	10 mm	Expandable	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant			492 '	150 m				Flame Retardant	UL VW-1
TE Connectivity Raychem Cable Protection VERSAFLEX-50-0-SP	1 m	3.28 ft	Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	2.362 "	60 mm	1.969 in	50 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant			492 '	150 m
TE Connectivity Raychem Cable Protection VERSAFLEX-15-8-SP	1 m	3.28 ft	Gray	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	0.787 in	20 mm	0.591 in	15 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant
TE Connectivity Raychem Cable Protection VERSAFLEX-1/2-0-SP			Black	150 °C	-50 °C	Sleeve	Polyester (PES)	Abrasion and Cut Resistant	0.748 "	19 mm	0.512 "	13 mm	Expandable	Chemical Resistant Fungus Resistant Solvent Resistant					Enter Number of Meters in Order Quantity	900 m	2953 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.04
		1	$ 31.09
		1	$ 52.16
		1	$ 8.03
		5	$ 26.19
		5	$ 7.70
		5	$ 1.85
		5	$ 48.90
		10	$ 1.41
		10	$ 23.73
		10	$ 45.64
		10	$ 6.03
		25	$ 22.09
		25	$ 1.33
		25	$ 43.36
		25	$ 5.36
		50	$ 1.26
		50	$ 5.02
		50	$ 21.28
		50	$ 42.38
		100	$ 4.69
		100	$ 41.41
		100	$ 1.19
		100	$ 20.78
	Digi-Spool®, Continuous Spool	1	$ 2.55
		5	$ 2.32
		10	$ 1.76
		25	$ 1.67
		50	$ 1.58
		100	$ 1.49
	Spool	1	$ 138.59
		5	$ 129.93
		10	$ 121.26

Description

General part information

RAYCHEM VERSAFLEX Series

Sleeve X Enter Number of Meters in Order Quantity Black

Documents

Technical documentation and resources

Datasheet

Versaflex Sleeving

Datasheet
