3357-9209

Active

3M (TC)

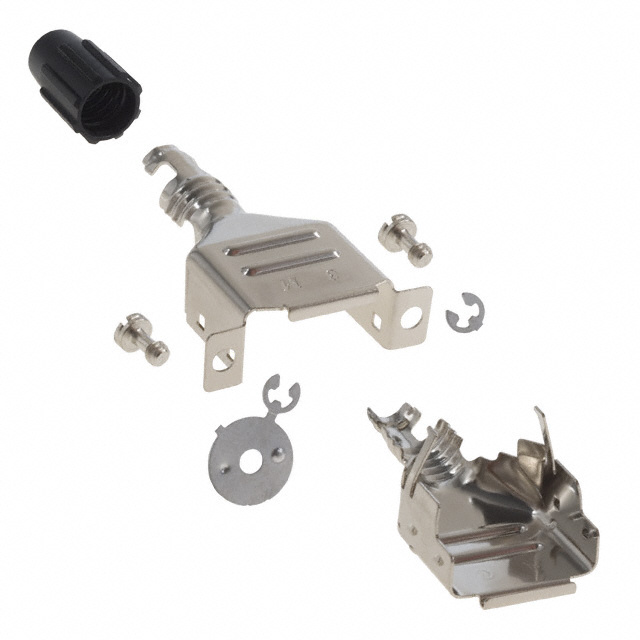

D SUB BACKSHELL, 3300 SERIES, DE, 180°, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +2

3357-9209

Active

3M (TC)

D SUB BACKSHELL, 3300 SERIES, DE, 180°, STEEL BODY

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3357-9209

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	HD15pos, 9pos
Compatible Shell Size	E
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Metal, Steel
Number of Positions	9
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

3357 Series

Part	Plating	Primary Material	Number of Positions	Hardware	Shielding	Compatible Shell Size	Material	Compatible D-Sub Size	Features	Cable Exit	Color	Cable Type	Accessory Type
3M (TC) 3357-9215	Nickel	Metal	15	Assembly Hardware Strain Relief	Shielded	A	Metal Steel	15pos HD26pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-4109		Plastic	9	Assembly Hardware	Shielded	E	Polyester Glass Filled	9pos HD15pos		180 °	Gray	Flat	Two Piece Backshell
3M (TC) 3357-6537-1C	Nickel over Copper	Plastic	37	Assembly Hardware Strain Relief	Shielded	C	Acrylonitrile Butadiene Styrene (ABS)	37pos HD62pos	Mating Screws 4-40	45 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-6515-1C	Nickel over Copper	Plastic	15	Assembly Hardware Strain Relief	Shielded	A	Acrylonitrile Butadiene Styrene (ABS)	15pos HD26pos	Mating Screws 4-40	45 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-6225-1C	Nickel over Copper	Plastic		Assembly Hardware Strain Relief	Shielded	B	Acrylonitrile Butadiene Styrene (ABS)	25pos HD44pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-9237	Nickel	Metal	37	Assembly Hardware Strain Relief	Shielded	C	Metal Steel	37pos HD62pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-4115		Plastic	15	Assembly Hardware	Shielded	A	Polyester Glass Filled	15pos HD26pos		180 °	Gray	Flat	Two Piece Backshell
3M (TC) 3357-6237-1C	Nickel over Copper	Plastic	37	Assembly Hardware Strain Relief	Shielded	C	Acrylonitrile Butadiene Styrene (ABS)	37pos HD62pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-9209	Nickel	Metal	9	Assembly Hardware Strain Relief	Shielded	E	Metal Steel	9pos HD15pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-4125		Plastic		Assembly Hardware	Shielded	B	Polyester Glass Filled	25pos HD44pos		180 °	Gray	Flat	Two Piece Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.64
		10	$ 6.63
		25	$ 5.98
		50	$ 5.55
		100	$ 5.15
		300	$ 4.60
		500	$ 4.37
		1000	$ 4.08
		2500	$ 3.80
Newark	Each	1	$ 7.46
		10	$ 7.15
		25	$ 6.60
		50	$ 6.23
		100	$ 5.95
		250	$ 5.25
		500	$ 5.10
		1000	$ 4.33

Description

General part information

3357 Series

The 3357-9209 is a 9-way D-sub EMI Junction Shell, steel body with nickel plating. Provides EMI/ESD protection similar to die-cast aluminum and option in grounding for discrete wire applications.

Documents

Technical documentation and resources

Datasheet

3357-9209

Deep-Dive with AI

3357-9209

Deep-Dive with AI

Technical Specifications

3357 Series

Pricing

Description

3357 Series

Documents

Datasheet

Interconnect Catalog

Technical Data Sheet EN

Product Change Notice EN

3357 Series
