3357-9237

Active

3M (TC)

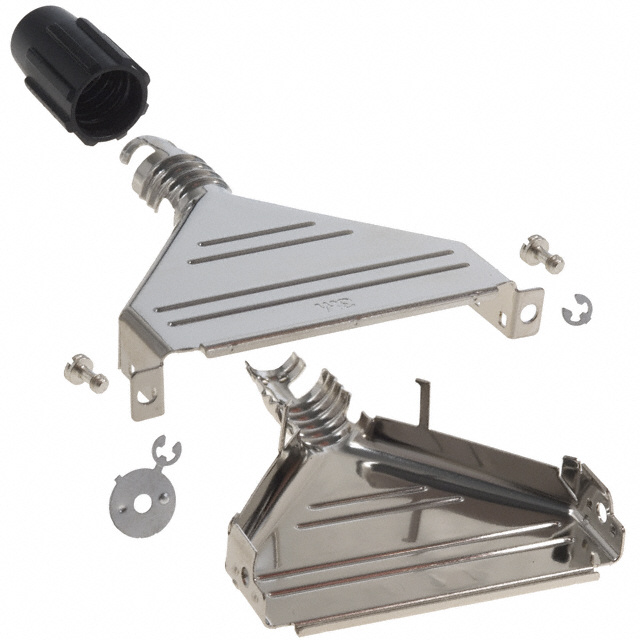

D SUB BACKSHELL, 3357 SERIES, DC, 180°, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +2

3357-9237

Active

3M (TC)

D SUB BACKSHELL, 3357 SERIES, DC, 180°, STEEL BODY

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3357-9237

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	37pos, HD62pos
Compatible Shell Size	C
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Metal, Steel
Number of Positions	37
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

3357 Series

Part	Plating	Primary Material	Number of Positions	Hardware	Shielding	Compatible Shell Size	Material	Compatible D-Sub Size	Features	Cable Exit	Color	Cable Type	Accessory Type
3M (TC) 3357-9215	Nickel	Metal	15	Assembly Hardware Strain Relief	Shielded	A	Metal Steel	15pos HD26pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-4109		Plastic	9	Assembly Hardware	Shielded	E	Polyester Glass Filled	9pos HD15pos		180 °	Gray	Flat	Two Piece Backshell
3M (TC) 3357-6537-1C	Nickel over Copper	Plastic	37	Assembly Hardware Strain Relief	Shielded	C	Acrylonitrile Butadiene Styrene (ABS)	37pos HD62pos	Mating Screws 4-40	45 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-6515-1C	Nickel over Copper	Plastic	15	Assembly Hardware Strain Relief	Shielded	A	Acrylonitrile Butadiene Styrene (ABS)	15pos HD26pos	Mating Screws 4-40	45 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-6225-1C	Nickel over Copper	Plastic		Assembly Hardware Strain Relief	Shielded	B	Acrylonitrile Butadiene Styrene (ABS)	25pos HD44pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-9237	Nickel	Metal	37	Assembly Hardware Strain Relief	Shielded	C	Metal Steel	37pos HD62pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-4115		Plastic	15	Assembly Hardware	Shielded	A	Polyester Glass Filled	15pos HD26pos		180 °	Gray	Flat	Two Piece Backshell
3M (TC) 3357-6237-1C	Nickel over Copper	Plastic	37	Assembly Hardware Strain Relief	Shielded	C	Acrylonitrile Butadiene Styrene (ABS)	37pos HD62pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-9209	Nickel	Metal	9	Assembly Hardware Strain Relief	Shielded	E	Metal Steel	9pos HD15pos	Mating Screws 4-40	180 °	Silver	Round	Two Piece Backshell
3M (TC) 3357-4125		Plastic		Assembly Hardware	Shielded	B	Polyester Glass Filled	25pos HD44pos		180 °	Gray	Flat	Two Piece Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.02
		10	$ 15.32
		25	$ 14.36
		50	$ 13.67
		100	$ 13.02
		300	$ 12.05
		500	$ 11.62
Newark	Each	1	$ 24.38
		10	$ 22.12
		25	$ 21.58
		50	$ 19.95
		100	$ 18.87
		250	$ 17.15
		500	$ 16.07
		1000	$ 14.81

Description

General part information

3357 Series

The 3357-9237 is a 37-way EMI Protecting D Shell made of steel with nickel-plated finish. It provides EMI/ESD protection similar to aluminum die-cast. Easy assembly reduces time and labor to ensure low applied cost. The shell comes with cover nut made of unfilled thermoplastic (ABS) and is ideal for use with flat and round cable.
