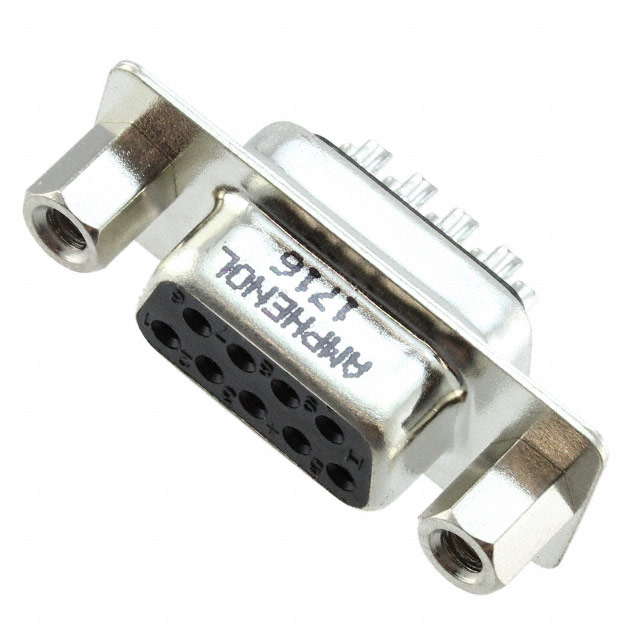

L77SDE09SVFC309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

L77SDE09SVFC309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDE09SVFC309

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L77SDE09 Series

Part	Contact Type	Connector Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Connector Style	Contact Form	Material Flammability Rating	Number of Rows	Current Rating (Amps)	Voltage Rating	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Flange Feature	Mounting Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDE09S1ACH4FC309	Signal	Receptacle Female Sockets	Solder	0.76 Ám	30 Áin	Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC	8.08 mm	0.318 "	DE E	1	Phosphor Bronze	Female Screwlock (4-40) Mating Side	Through Hole Right Angle	Thermoplastic Glass Filled	-55 °C	125 °C	Black
Amphenol ICC (Commercial Products) L77SDE09SABCH4RC309	Signal	Receptacle Female Sockets	Solder	0.76 Ám	30 Áin	Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC	14.99 mm	0.59 "	DE E	1	Phosphor Bronze	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	-55 °C	125 °C	Black
Amphenol ICC (Commercial Products) L77SDE09SA4CH4FC309	Signal	Receptacle Female Sockets	Solder	0.76 Ám	30 Áin	Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC	8.08 mm	0.318 "	DE E	1	Phosphor Bronze	Female Screwlock (4-40) Mating Side	Through Hole Right Angle	Thermoplastic Glass Filled	-55 °C	125 °C	Black
Amphenol ICC (Commercial Products) L77SDE09SOL2GC309	Signal	Receptacle Female Sockets	Solder	0.76 Ám	30 Áin	Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC			DE E	1	Phosphor Bronze	Housing/Shell (Unthreaded)	Through Hole	Thermoplastic Glass Filled	-55 °C	125 °C	Black
Amphenol ICC (Commercial Products) L77SDE09S1ACH4F48	Signal	Receptacle Female Sockets	Solder			Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC	8.08 mm	0.318 "	DE E	1	Phosphor Bronze	Female Screwlock (4-40) Mating Side	Through Hole Right Angle	Thermoplastic Glass Filled	-55 °C	125 °C	Black	Flash
Amphenol ICC (Commercial Products) L77SDE09SA4CH4R	Signal	Receptacle Female Sockets	Solder			Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC	8.08 mm	0.318 "	DE E	1	Phosphor Bronze	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	-55 °C	125 °C	Black	Flash
Amphenol ICC (Commercial Products) L77SDE09S1ACH4RC309	Signal	Receptacle Female Sockets	Solder	0.76 Ám	30 Áin	Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC	10.3 mm	0.406 in	DE E	1	Phosphor Bronze	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	-55 °C	125 °C	Black
Amphenol ICC (Commercial Products) L77SDE09SA4CO4RC309	Signal	Receptacle Female Sockets	Solder	0.76 Ám	30 Áin	Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC			DE E	1	Phosphor Bronze	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	-55 °C	125 °C	Black
Amphenol ICC (Commercial Products) L77SDE09S1ACH4R	Signal	Receptacle Female Sockets	Solder			Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC	10.3 mm	0.406 in	DE E	1	Phosphor Bronze	4-40 Board Side	Through Hole Right Angle	Thermoplastic Glass Filled	-55 °C	125 °C	Black	Flash
Amphenol ICC (Commercial Products) L77SDE09SVFC309	Signal	Receptacle Female Sockets		0.76 Ám	30 Áin	Gold	9	D-Sub	Stamped	UL94 V-0	2	3 A	250 VDC			DE E	1	Brass	Female Screwlock (4-40) Mating Side	Free Hanging (In-Line)	Thermoplastic Glass Filled	-55 °C	105 ░C	Black		20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.03
		10	$ 1.77
		25	$ 1.69
		40	$ 1.66
		90	$ 1.58
		270	$ 1.43
		450	$ 1.32
		990	$ 1.13
		2430	$ 1.05

Description

General part information

L77SDE09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
