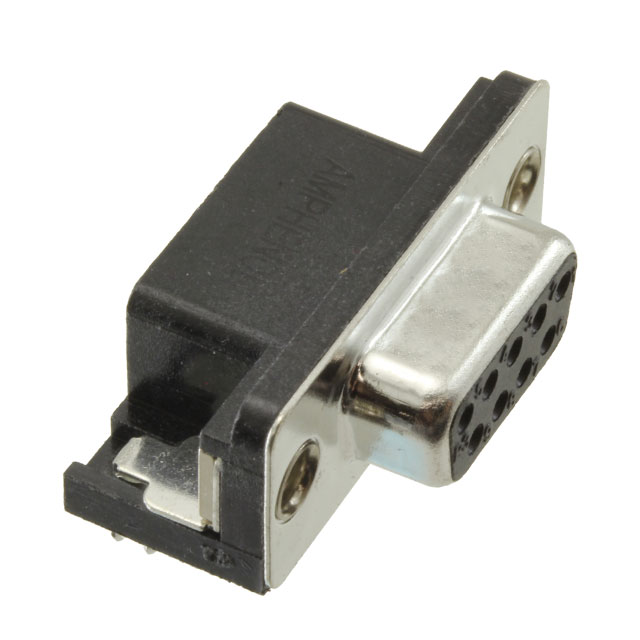

L77SDE09SA4CH4R
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
L77SDE09SA4CH4R
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L77SDE09SA4CH4R |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.63 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.35 | |||
| 40 | $ 1.32 | |||
| 90 | $ 1.26 | |||
| 270 | $ 1.14 | |||
| 450 | $ 1.05 | |||
| 990 | $ 0.90 | |||
| 2430 | $ 0.84 | |||
Description
General part information
L77SDE09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
